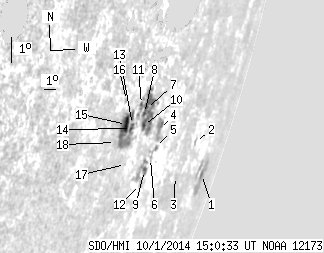

SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.15 | 158.30 | 32.83 | 314.13 | -16.01 | 249.27 | 72.77 | 251.46 | 0.9658 | -227.8 | 40.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.11 | 21.39 | 8.46 | 83.98 | -17.91 | 256.70 | 80.20 | 250.93 | 0.9927 | -238.8 | -38.5 | |
| 0.00 | 1.85 | 0.00 | 5.06 | -16.47 | 253.48 | 76.98 | 251.82 | 0.9842 | 388.0 | 300.1 | |
| 0.00 | 2.20 | 0.00 | 5.39 | -17.42 | 251.98 | 75.48 | 250.61 | 0.9801 | 161.0 | 137.6 | |
| 0.00 | 11.97 | 0.00 | 22.03 | -15.48 | 248.20 | 71.71 | 251.83 | 0.9642 | 598.0 | 512.8 | |
| 0.53 | 3.87 | 0.99 | 7.21 | -16.07 | 248.31 | 71.81 | 251.25 | 0.9652 | -47.0 | -176.9 | |
| 0.00 | 1.85 | 0.00 | 3.43 | -16.39 | 248.09 | 71.59 | 250.88 | 0.9646 | -330.0 | -283.0 | |
| 1.76 | 51.07 | 2.87 | 84.44 | -14.60 | 246.27 | 69.77 | 252.33 | 0.9544 | 122.8 | 359.0 | |
| 1.32 | -7.00 | 2.15 | -7.00 | -14.75 | 246.20 | 69.70 | 252.16 | 0.9541 | 57.4 | 999999 | |
| 2.11 | 14.62 | 3.87 | 26.15 | -16.74 | 247.81 | 71.31 | 250.46 | 0.9637 | -383.5 | -243.0 | |
| 1.23 | -7.00 | 2.05 | -7.00 | -15.15 | 246.40 | 69.90 | 251.79 | 0.9556 | 135.0 | 999999 | |
| 1.06 | -7.00 | 1.67 | -7.00 | -14.40 | 245.69 | 69.19 | 252.40 | 0.9512 | -70.2 | 999999 | |
| 0.00 | 2.29 | 0.00 | 4.21 | -17.19 | 247.82 | 71.32 | 250.01 | 0.9642 | -16.0 | -22.4 | |
| 0.26 | 44.55 | 0.41 | 68.29 | -14.99 | 245.31 | 68.81 | 251.71 | 0.9499 | -292.3 | -311.8 | |
| 1.14 | -13.00 | 1.79 | -13.00 | -15.12 | 245.31 | 68.81 | 251.58 | 0.9501 | -269.2 | 999999 | |
| 5.63 | -13.00 | 8.57 | -13.00 | -14.93 | 244.75 | 68.25 | 251.65 | 0.9469 | -666.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 2.07 | -14.11 | 244.22 | 67.72 | 252.38 | 0.9431 | -406.0 | -344.2 | |
| 0.00 | 0.26 | 0.00 | 0.43 | -16.31 | 245.66 | 69.16 | 250.44 | 0.9532 | -264.0 | -198.3 | |
| 0.00 | 0.97 | 0.00 | 1.44 | -15.44 | 244.17 | 67.67 | 251.00 | 0.9445 | -134.0 | -128.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
