SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.65 | 37.40 | 1.41 | 20.90 | -14.45 | 159.54 | -16.96 | 141.22 | 0.4600 | -288.5 | -250.6 | |
|
previous
or next observation for the same group /

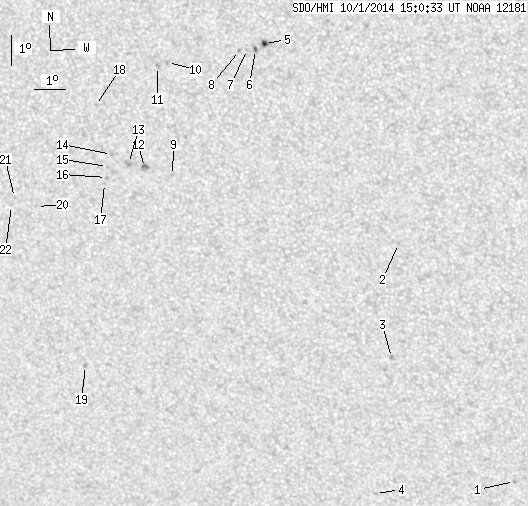

back to the solar disc SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.62 | -24.27 | 169.28 | -7.21 | 167.43 | 0.5283 | 710.0 | 711.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.30 | 165.99 | -10.51 | 155.76 | 0.4281 | 681.0 | 597.5 | |
| 0.00 | 2.11 | 0.00 | 1.20 | -20.08 | 165.52 | -10.98 | 158.26 | 0.4848 | 860.0 | 623.9 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -24.78 | 164.59 | -11.91 | 160.18 | 0.5547 | 620.0 | 569.2 | |
| 2.03 | 4.67 | 1.08 | 2.49 | -10.02 | 162.09 | -14.41 | 139.20 | 0.3766 | -1008.0 | -626.9 | |
| 0.62 | 2.47 | 0.33 | 1.32 | -10.21 | 161.80 | -14.70 | 138.97 | 0.3821 | -930.3 | -748.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -10.22 | 161.54 | -14.96 | 138.49 | 0.3849 | -643.0 | -567.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -10.26 | 161.29 | -15.21 | 138.08 | 0.3881 | -738.0 | -633.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.30 | 158.87 | -17.62 | 140.27 | 0.4609 | -691.0 | -522.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -10.71 | 158.97 | -17.53 | 134.79 | 0.4187 | 728.0 | 618.1 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -10.85 | 158.64 | -17.86 | 134.49 | 0.4240 | 885.0 | 764.2 | |
| 0.00 | 4.31 | 0.00 | 2.41 | -14.08 | 157.98 | -18.52 | 138.55 | 0.4673 | -967.0 | -846.9 | |
| 0.00 | 3.26 | 0.00 | 1.83 | -13.97 | 157.47 | -19.03 | 137.61 | 0.4713 | -896.0 | -751.5 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -13.70 | 156.93 | -19.56 | 136.43 | 0.4739 | -648.0 | -561.6 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -14.10 | 156.77 | -19.73 | 136.77 | 0.4800 | -630.0 | -525.8 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -14.45 | 156.70 | -19.80 | 137.19 | 0.4846 | -683.0 | -591.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -14.65 | 156.62 | -19.88 | 137.35 | 0.4876 | -520.0 | -433.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -12.16 | 156.54 | -19.96 | 133.47 | 0.4617 | -696.0 | -614.3 | |
| 0.00 | 2.20 | 0.00 | 1.32 | -20.70 | 155.24 | -21.26 | 143.15 | 0.5678 | 478.0 | 378.9 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -15.49 | 154.26 | -22.24 | 135.35 | 0.5210 | -644.0 | -478.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.23 | 153.55 | -22.95 | 134.09 | 0.5259 | -710.0 | -609.3 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -15.50 | 153.42 | -23.08 | 134.30 | 0.5300 | -636.0 | -534.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
