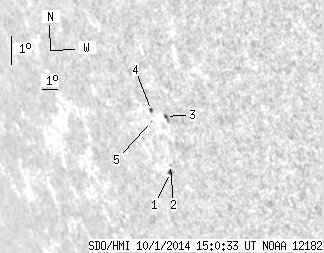

SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.46 | 7.83 | 2.64 | 8.38 | -14.06 | 117.18 | -59.32 | 109.71 | 0.8881 | 37.4 | 102.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 1.85 | 0.96 | 2.01 | -15.31 | 117.09 | -59.41 | 111.05 | 0.8915 | -302.7 | -299.7 | |
| 0.00 | 0.70 | 0.00 | 0.76 | -15.04 | 117.21 | -59.29 | 110.79 | 0.8900 | -455.0 | -417.1 | |
| 0.79 | 2.99 | 0.83 | 3.14 | -13.48 | 117.58 | -58.92 | 109.20 | 0.8838 | 451.8 | 346.6 | |
| 0.79 | 1.67 | 0.85 | 1.80 | -13.38 | 116.77 | -59.73 | 108.85 | 0.8897 | 362.7 | 296.9 | |
| 0.00 | 0.62 | 0.00 | 0.67 | -13.74 | 116.62 | -59.88 | 109.21 | 0.8916 | 236.0 | 207.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
