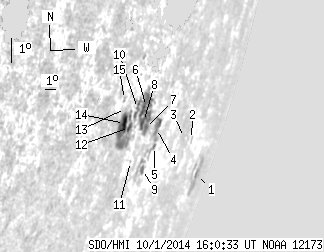

SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 155.66 | 74.02 | 326.51 | -16.02 | 249.66 | 73.71 | 251.63 | 0.9694 | 109.6 | -9.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 21.57 | 5.35 | 92.41 | -17.95 | 256.84 | 80.89 | 250.99 | 0.9940 | -252.7 | -23.4 | |
| 0.00 | 1.06 | 0.00 | 3.05 | -16.44 | 253.46 | 77.52 | 251.95 | 0.9857 | 371.0 | 296.0 | |
| 0.00 | 5.99 | 0.00 | 15.23 | -16.23 | 252.21 | 76.26 | 251.94 | 0.9819 | 245.0 | 254.2 | |
| 0.00 | 11.36 | 0.00 | 21.60 | -15.47 | 248.16 | 72.21 | 251.94 | 0.9664 | 539.0 | 521.2 | |
| 0.97 | 7.66 | 1.88 | 14.65 | -16.09 | 248.50 | 72.56 | 251.39 | 0.9684 | 72.4 | -220.4 | |
| 15.85 | 51.68 | 26.97 | 87.84 | -14.58 | 246.46 | 70.51 | 252.50 | 0.9579 | 404.6 | 287.7 | |
| 3.17 | -6.00 | 5.59 | -6.00 | -15.33 | 246.94 | 70.99 | 251.83 | 0.9609 | 456.6 | 999999 | |
| 7.04 | -6.00 | 12.11 | -6.00 | -15.07 | 246.54 | 70.59 | 252.02 | 0.9588 | 367.8 | 999999 | |
| 1.85 | 10.04 | 3.49 | 18.66 | -16.75 | 247.87 | 71.92 | 250.59 | 0.9664 | -375.1 | -337.1 | |
| 3.70 | -6.00 | 6.01 | -6.00 | -14.55 | 245.60 | 69.65 | 252.35 | 0.9537 | -91.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.45 | -16.31 | 246.31 | 70.36 | 250.70 | 0.9590 | 93.0 | 93.0 | |
| 2.73 | 43.58 | 4.38 | 68.87 | -15.11 | 245.29 | 69.34 | 251.70 | 0.9528 | -268.3 | -323.7 | |
| 0.00 | 1.14 | 0.00 | 1.76 | -14.42 | 244.46 | 68.51 | 252.24 | 0.9477 | -157.0 | -181.5 | |
| 5.28 | -12.00 | 8.24 | -12.00 | -14.92 | 244.71 | 68.76 | 251.77 | 0.9496 | -674.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.99 | -14.10 | 244.17 | 68.22 | 252.50 | 0.9458 | -430.0 | -359.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
