SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.34 | 0.00 | 3.97 | 4.56 | 138.26 | -37.68 | 91.25 | 0.6116 | 101.2 | 144.4 | |
|
previous
or next observation for the same group /

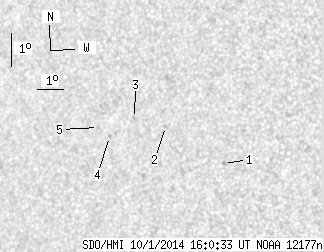

back to the solar disc SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.64 | 3.85 | 141.32 | -34.63 | 92.93 | 0.5699 | -711.0 | -519.2 | |
| 0.00 | 1.41 | 0.00 | 0.87 | 4.82 | 139.11 | -36.83 | 90.92 | 0.5997 | -639.0 | -477.8 | |
| 0.00 | 1.32 | 0.00 | 0.83 | 4.97 | 137.92 | -38.02 | 90.50 | 0.6159 | 798.0 | 685.7 | |
| 0.00 | 1.32 | 0.00 | 0.84 | 4.37 | 137.00 | -38.95 | 91.35 | 0.6293 | 576.0 | 470.2 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 4.60 | 136.55 | -39.39 | 90.91 | 0.6349 | 482.0 | 450.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
