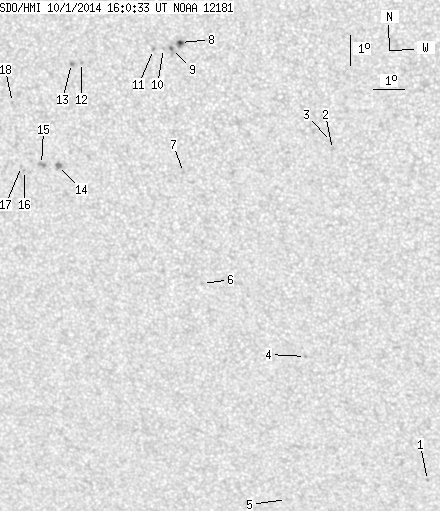

SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.02 | 30.36 | 1.08 | 16.69 | -13.60 | 160.97 | -14.98 | 143.45 | 0.4313 | -118.8 | -243.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.67 | -24.29 | 169.27 | -6.68 | 168.35 | 0.5270 | 872.0 | 605.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.30 | 166.75 | -9.20 | 155.45 | 0.3760 | 819.0 | 714.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.05 | 166.73 | -9.22 | 155.11 | 0.3724 | 926.0 | 755.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -20.10 | 165.53 | -10.42 | 159.28 | 0.4820 | 882.0 | 796.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.05 | 164.49 | -11.45 | 161.05 | 0.5562 | 667.0 | 554.3 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -17.75 | 162.36 | -13.59 | 151.42 | 0.4696 | -770.0 | -485.6 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -14.15 | 162.01 | -13.94 | 146.47 | 0.4246 | 653.0 | 454.3 | |
| 1.58 | 3.87 | 0.84 | 2.06 | -10.03 | 162.14 | -13.81 | 140.43 | 0.3705 | -1105.5 | -912.0 | |
| 0.44 | 2.99 | 0.24 | 1.60 | -10.22 | 161.85 | -14.10 | 140.18 | 0.3760 | -989.0 | -694.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.23 | 161.60 | -14.35 | 139.69 | 0.3787 | -763.0 | -474.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -10.27 | 161.28 | -14.67 | 139.14 | 0.3825 | -872.0 | -662.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -10.75 | 158.97 | -16.98 | 135.78 | 0.4131 | 881.0 | 703.5 | |
| 0.00 | 2.02 | 0.00 | 1.10 | -10.80 | 158.65 | -17.30 | 135.31 | 0.4172 | 914.0 | 837.2 | |
| 0.00 | 3.96 | 0.00 | 2.21 | -14.06 | 157.99 | -17.96 | 139.39 | 0.4613 | -1080.0 | -878.7 | |
| 0.00 | 3.26 | 0.00 | 1.82 | -14.04 | 157.44 | -18.51 | 138.51 | 0.4668 | -912.0 | -791.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.26 | 156.86 | -19.08 | 137.96 | 0.4751 | -668.0 | -595.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.13 | 156.78 | -19.17 | 137.65 | 0.4746 | -762.0 | -648.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -12.10 | 156.65 | -19.30 | 134.34 | 0.4536 | -780.0 | -647.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
