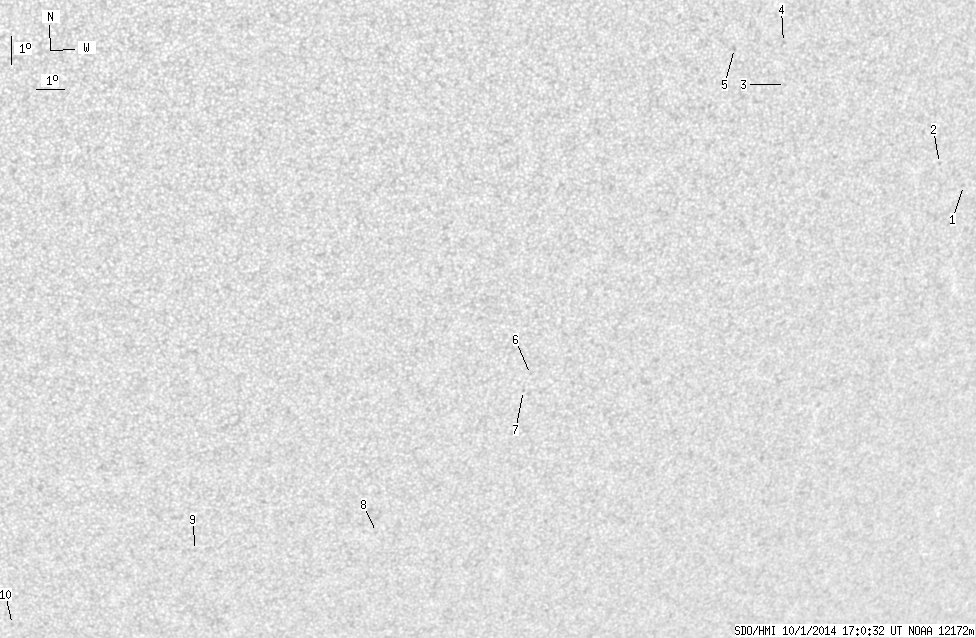

SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.08 | 0.00 | 7.10 | -23.50 | 197.82 | 22.43 | 215.97 | 0.6334 | -315.4 | -281.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.85 | -21.12 | 210.31 | 34.92 | 230.06 | 0.6987 | 727.0 | 496.1 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -20.30 | 209.17 | 33.77 | 230.13 | 0.6816 | 424.0 | 365.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -17.28 | 202.87 | 27.48 | 228.21 | 0.5931 | -372.0 | -410.9 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -15.90 | 202.59 | 27.19 | 229.77 | 0.5779 | -538.0 | -444.2 | |
| 0.00 | 2.11 | 0.00 | 1.26 | -16.00 | 200.89 | 25.50 | 227.83 | 0.5605 | -678.0 | -634.4 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -26.81 | 195.50 | 20.11 | 209.35 | 0.6283 | -629.0 | -485.2 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -27.38 | 195.36 | 19.96 | 208.68 | 0.6338 | -610.0 | -559.5 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -32.51 | 190.94 | 15.55 | 199.78 | 0.6702 | -498.0 | -483.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -33.02 | 184.40 | 9.00 | 191.62 | 0.6534 | -289.0 | -294.6 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -35.88 | 177.89 | 2.49 | 182.98 | 0.6797 | -691.0 | -481.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
