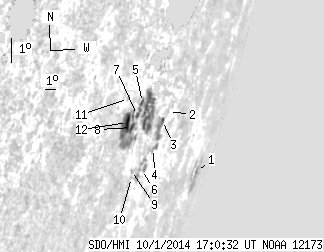

SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.03 | 142.24 | 23.57 | 301.57 | -15.92 | 248.87 | 73.48 | 251.67 | 0.9682 | -215.4 | 34.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 18.04 | 2.86 | 83.66 | -17.88 | 256.74 | 81.35 | 251.13 | 0.9948 | -197.6 | -56.2 | |
| 0.00 | 0.62 | 0.00 | 1.26 | -15.04 | 248.82 | 73.43 | 252.61 | 0.9710 | 401.0 | 431.3 | |
| 1.32 | 13.20 | 2.63 | 26.07 | -15.28 | 248.38 | 72.98 | 252.29 | 0.9694 | 589.7 | 500.8 | |
| 0.00 | 5.72 | 0.00 | 11.37 | -16.15 | 248.21 | 72.82 | 251.38 | 0.9695 | -266.0 | -137.4 | |
| 1.58 | 91.46 | 2.65 | 154.69 | -14.40 | 245.67 | 70.27 | 252.64 | 0.9566 | -42.1 | 48.7 | |
| 0.00 | 9.95 | 0.00 | 19.01 | -16.74 | 247.50 | 72.11 | 250.64 | 0.9671 | -366.0 | -205.6 | |
| 1.50 | -5.00 | 2.49 | -5.00 | -14.79 | 245.49 | 70.09 | 252.20 | 0.9561 | -106.9 | 999999 | |
| 2.29 | -5.00 | 3.78 | -5.00 | -15.13 | 245.19 | 69.80 | 251.78 | 0.9551 | -239.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 2.05 | -16.64 | 246.41 | 71.02 | 250.50 | 0.9623 | 398.0 | 348.4 | |
| 0.00 | 0.70 | 0.00 | 1.28 | -16.89 | 246.63 | 71.24 | 250.30 | 0.9636 | 458.0 | 409.0 | |
| 0.00 | 1.41 | 0.00 | 2.18 | -14.11 | 244.21 | 68.81 | 252.63 | 0.9489 | -343.0 | -297.5 | |
| 5.72 | -5.00 | 9.16 | -5.00 | -14.92 | 244.67 | 69.28 | 251.89 | 0.9522 | -693.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
