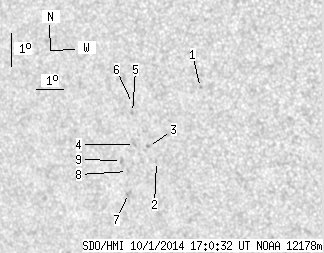

SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.61 | 0.00 | 9.17 | -5.18 | 139.27 | -36.12 | 107.33 | 0.6174 | -687.9 | -558.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.69 | -3.04 | 141.70 | -33.70 | 105.10 | 0.5760 | -673.0 | -444.5 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -5.41 | 139.96 | -35.43 | 108.06 | 0.6093 | -672.0 | -579.5 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -4.97 | 139.69 | -35.70 | 107.24 | 0.6110 | -820.0 | -666.8 | |
| 0.00 | 1.85 | 0.00 | 1.16 | -4.95 | 139.17 | -36.22 | 106.94 | 0.6177 | -671.0 | -542.6 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -3.97 | 139.16 | -36.24 | 105.41 | 0.6140 | -660.0 | -611.7 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -3.70 | 139.17 | -36.22 | 104.99 | 0.6127 | -719.0 | -523.7 | |
| 0.00 | 2.90 | 0.00 | 1.85 | -6.47 | 138.83 | -36.56 | 109.10 | 0.6287 | -763.0 | -622.1 | |
| 0.00 | 1.85 | 0.00 | 1.17 | -5.80 | 138.85 | -36.54 | 108.09 | 0.6255 | -617.0 | -564.7 | |
| 0.00 | 2.29 | 0.00 | 1.45 | -5.47 | 138.65 | -36.75 | 107.49 | 0.6267 | -596.0 | -445.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
