SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.57 | 96.46 | 13.59 | 61.04 | -9.96 | 140.63 | -34.76 | 115.35 | 0.6237 | 603.1 | 347.6 | |
|
previous
or next observation for the same group /

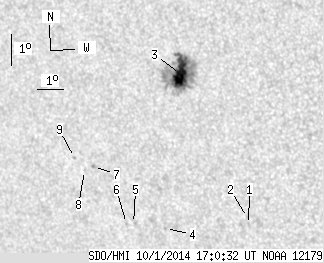

back to the solar disc SDO HMI 2014-10-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.78 | -14.27 | 142.63 | -32.76 | 122.94 | 0.6272 | 657.0 | 479.3 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -14.04 | 142.63 | -32.76 | 122.63 | 0.6256 | 635.0 | 528.3 | |
| 21.57 | 89.34 | 13.59 | 56.31 | -9.65 | 140.78 | -34.61 | 115.00 | 0.6201 | 1060.7 | 399.6 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -14.61 | 139.45 | -35.95 | 121.04 | 0.6653 | 579.0 | 474.4 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -14.54 | 138.22 | -37.17 | 120.11 | 0.6784 | -646.0 | -662.4 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -14.56 | 137.95 | -37.45 | 119.96 | 0.6816 | -682.0 | -475.6 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -12.81 | 136.99 | -38.41 | 117.05 | 0.6825 | -846.0 | -750.1 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.97 | 136.60 | -38.79 | 117.03 | 0.6877 | -492.0 | -434.1 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -12.58 | 136.28 | -39.12 | 116.32 | 0.6893 | -600.0 | -471.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
