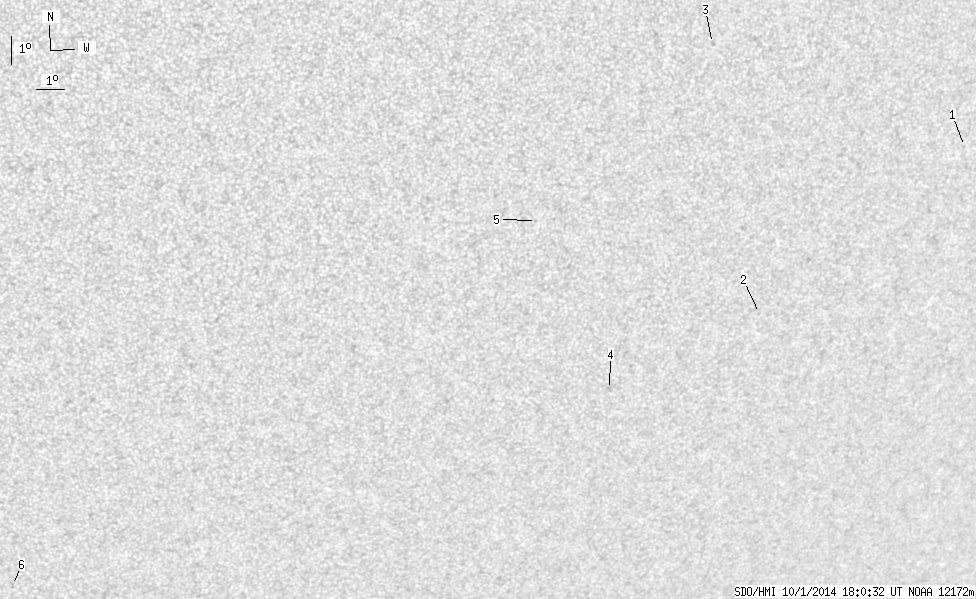

SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.53 | 0.00 | 5.58 | -27.26 | 194.64 | 19.80 | 209.26 | 0.6523 | 43.2 | -110.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.43 | -21.09 | 210.30 | 35.46 | 230.51 | 0.7036 | 401.0 | 457.1 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -26.42 | 203.81 | 28.97 | 219.12 | 0.6897 | 284.0 | 433.5 | |
| 0.00 | 1.58 | 0.00 | 0.95 | -17.03 | 200.17 | 25.33 | 226.25 | 0.5685 | -393.0 | -414.1 | |
| 0.00 | 3.08 | 0.00 | 2.07 | -28.88 | 198.76 | 23.92 | 211.78 | 0.6764 | -51.0 | -160.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -22.70 | 194.92 | 20.08 | 213.19 | 0.5808 | 262.0 | 329.4 | |
| 0.00 | 2.02 | 0.00 | 1.36 | -35.80 | 177.81 | 2.97 | 183.56 | 0.6790 | -244.0 | -268.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
