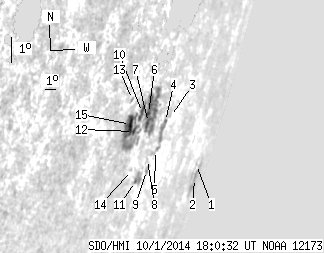

SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.02 | 147.27 | 38.34 | 314.99 | -15.87 | 248.67 | 73.83 | 251.80 | 0.9700 | -135.0 | 68.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 4.36 | -17.50 | 256.02 | 81.17 | 251.47 | 0.9944 | 227.0 | 219.9 | |
| 0.00 | 14.17 | 0.00 | 72.62 | -18.04 | 256.76 | 81.92 | 251.05 | 0.9958 | 205.0 | 31.4 | |
| 0.00 | 0.79 | 0.00 | 1.69 | -15.15 | 248.92 | 74.08 | 252.63 | 0.9736 | 416.0 | 389.1 | |
| 0.88 | 10.03 | 1.82 | 20.67 | -15.25 | 248.45 | 73.61 | 252.43 | 0.9719 | 542.2 | 465.4 | |
| 0.00 | 4.93 | 0.00 | 10.16 | -16.14 | 248.19 | 73.35 | 251.48 | 0.9716 | -110.0 | -137.7 | |
| 1.50 | 101.93 | 2.67 | 177.84 | -14.74 | 246.23 | 71.39 | 252.51 | 0.9621 | 86.1 | 49.5 | |
| 5.02 | -6.00 | 9.15 | -6.00 | -15.06 | 246.48 | 71.64 | 252.25 | 0.9636 | 454.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.90 | -16.35 | 247.52 | 72.68 | 251.14 | 0.9691 | -373.0 | -331.4 | |
| 0.00 | 3.26 | 0.00 | 6.60 | -16.73 | 247.79 | 72.95 | 250.81 | 0.9705 | -420.0 | -352.1 | |
| 5.11 | -6.00 | 8.76 | -6.00 | -14.63 | 245.56 | 70.72 | 252.49 | 0.9590 | -269.7 | 999999 | |
| 0.79 | 8.10 | 1.51 | 15.65 | -16.98 | 246.86 | 72.02 | 250.37 | 0.9670 | 302.0 | 311.1 | |
| 1.94 | -6.00 | 3.28 | -6.00 | -15.19 | 245.13 | 70.29 | 251.83 | 0.9575 | -327.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 2.38 | -14.07 | 244.24 | 69.40 | 252.79 | 0.9519 | -319.0 | -290.8 | |
| 0.00 | 0.62 | 0.00 | 1.12 | -16.53 | 246.05 | 71.21 | 250.65 | 0.9631 | -273.0 | -181.3 | |
| 6.78 | -6.00 | 11.15 | -6.00 | -14.91 | 244.65 | 69.81 | 252.01 | 0.9549 | -717.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
