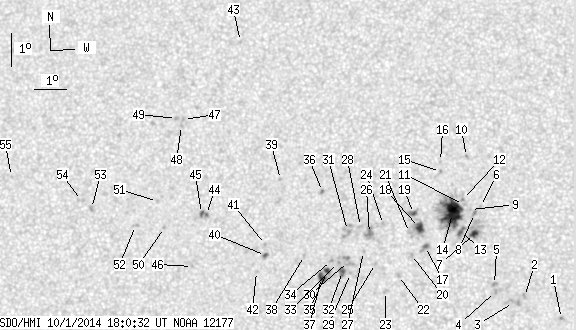

SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.50 | 223.81 | 28.29 | 112.25 | 12.24 | 168.59 | -6.25 | 44.77 | 0.1484 | -202.4 | -81.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.65 | 9.62 | 173.87 | -0.98 | 18.24 | 0.0539 | -1136.0 | -935.3 | |
| 0.00 | 1.94 | 0.00 | 0.96 | 10.28 | 172.74 | -2.11 | 30.04 | 0.0726 | -959.0 | -796.3 | |
| 0.00 | 7.04 | 0.00 | 3.50 | 10.09 | 172.40 | -2.44 | 35.21 | 0.0730 | -772.0 | -721.8 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 10.42 | 171.85 | -2.99 | 38.23 | 0.0833 | -967.0 | -821.5 | |
| 0.00 | 2.20 | 0.00 | 1.09 | 10.63 | 171.82 | -3.02 | 36.99 | 0.0866 | -972.0 | -879.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.98 | 171.36 | -3.48 | 28.33 | 0.1252 | -784.0 | -573.8 | |
| 3.34 | 13.73 | 1.67 | 6.85 | 12.16 | 171.19 | -3.65 | 33.10 | 0.1146 | -1185.3 | -661.1 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 12.77 | 171.18 | -3.66 | 30.43 | 0.1235 | -1010.0 | -843.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 12.89 | 171.06 | -3.79 | 30.77 | 0.1264 | -898.0 | -657.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.49 | 170.91 | -3.93 | 26.06 | 0.1519 | 916.0 | 753.0 | |
| 0.00 | 2.55 | 0.00 | 1.28 | 13.04 | 170.84 | -4.00 | 31.57 | 0.1306 | -580.0 | -465.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 13.19 | 170.81 | -4.04 | 31.17 | 0.1331 | -684.0 | -556.7 | |
| 2.20 | 5.46 | 1.10 | 2.72 | 12.22 | 170.76 | -4.08 | 35.78 | 0.1196 | -1146.5 | -838.6 | |
| 32.13 | 65.57 | 16.05 | 32.76 | 12.76 | 170.50 | -4.34 | 34.84 | 0.1298 | -1240.2 | -572.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 14.03 | 170.11 | -4.73 | 32.02 | 0.1517 | -833.0 | -652.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 14.33 | 170.10 | -4.74 | 30.99 | 0.1562 | -611.0 | -494.2 | |
| 0.88 | 4.49 | 0.44 | 2.24 | 11.76 | 169.69 | -5.15 | 44.73 | 0.1255 | -1234.9 | -885.9 | |
| 5.19 | 8.45 | 2.60 | 4.22 | 12.33 | 169.49 | -5.35 | 42.70 | 0.1349 | -1211.0 | -831.1 | |
| 1.23 | 5.81 | 0.62 | 2.91 | 12.75 | 169.30 | -5.54 | 41.62 | 0.1425 | -980.0 | -662.3 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 11.52 | 169.26 | -5.58 | 48.40 | 0.1280 | -968.0 | -730.9 | |
| 0.00 | 2.64 | 0.00 | 1.32 | 12.18 | 169.19 | -5.65 | 45.06 | 0.1367 | -96.0 | -137.8 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 10.88 | 168.88 | -5.97 | 54.21 | 0.1264 | 1019.0 | 807.5 | |
| 0.00 | 2.46 | 0.00 | 1.23 | 10.40 | 168.49 | -6.36 | 59.08 | 0.1275 | 891.0 | 707.2 | |
| 0.00 | 1.85 | 0.00 | 0.93 | 12.41 | 168.38 | -6.46 | 47.62 | 0.1495 | -903.0 | -682.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.23 | 168.16 | -6.68 | 55.01 | 0.1400 | 803.0 | 666.6 | |
| 0.00 | 9.68 | 0.00 | 4.85 | 12.13 | 167.95 | -6.89 | 50.81 | 0.1520 | 172.0 | 198.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.59 | 167.78 | -7.06 | 54.40 | 0.1488 | 843.0 | 685.0 | |
| 0.00 | 2.11 | 0.00 | 1.06 | 12.34 | 167.67 | -7.17 | 50.85 | 0.1580 | 761.0 | 571.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.92 | 167.40 | -7.44 | 59.59 | 0.1482 | 882.0 | 687.4 | |
| 0.00 | 6.51 | 0.00 | 3.26 | 11.28 | 167.33 | -7.52 | 57.74 | 0.1524 | 690.0 | 781.5 | |
| 0.00 | 10.21 | 0.00 | 5.13 | 12.22 | 167.27 | -7.57 | 52.95 | 0.1621 | 911.0 | 704.6 | |
| 2.29 | 4.58 | 1.15 | 2.29 | 10.98 | 167.15 | -7.69 | 60.04 | 0.1524 | 1192.3 | 970.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.25 | 167.02 | -7.82 | 58.93 | 0.1566 | 1027.0 | 885.1 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 11.31 | 166.80 | -8.04 | 59.28 | 0.1603 | 1019.0 | 770.6 | |
| 2.29 | 12.15 | 1.15 | 6.09 | 11.00 | 166.69 | -8.16 | 61.29 | 0.1595 | 1133.2 | 777.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 13.38 | 166.46 | -8.38 | 50.33 | 0.1851 | 1247.0 | 1000.4 | |
| 4.22 | -35.00 | 2.12 | -35.00 | 10.79 | 166.51 | -8.34 | 62.98 | 0.1606 | 1026.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.89 | 11.44 | 165.96 | -8.88 | 60.92 | 0.1739 | 837.0 | 593.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 13.72 | 165.14 | -9.71 | 52.89 | 0.2064 | 852.0 | 703.2 | |
| 0.97 | 3.08 | 0.49 | 1.55 | 11.42 | 164.75 | -10.09 | 63.89 | 0.1921 | -1141.1 | -844.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 11.75 | 164.74 | -10.10 | 62.36 | 0.1947 | -870.0 | -755.7 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 10.94 | 164.49 | -10.35 | 66.75 | 0.1929 | -702.0 | -564.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 17.89 | 163.65 | -11.19 | 43.26 | 0.2707 | 748.0 | 567.2 | |
| 0.53 | 4.14 | 0.27 | 2.11 | 12.62 | 162.86 | -11.98 | 62.45 | 0.2295 | 1046.5 | 813.5 | |
| 1.23 | -44.00 | 0.63 | -44.00 | 12.64 | 162.70 | -12.14 | 62.64 | 0.2321 | 973.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 11.04 | 162.49 | -12.35 | 69.51 | 0.2251 | 901.0 | 691.1 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 15.47 | 161.98 | -12.86 | 54.08 | 0.2661 | 843.0 | 699.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 15.29 | 161.93 | -12.92 | 54.77 | 0.2652 | 910.0 | 694.4 | |
| 0.00 | 2.02 | 0.00 | 1.04 | 15.50 | 161.75 | -13.09 | 54.45 | 0.2694 | 838.0 | 703.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 12.20 | 161.56 | -13.28 | 66.23 | 0.2465 | 866.0 | 661.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 12.97 | 161.30 | -13.54 | 63.76 | 0.2556 | 810.0 | 619.3 | |
| 0.00 | 2.20 | 0.00 | 1.13 | 12.23 | 160.64 | -14.20 | 67.37 | 0.2609 | 1032.0 | 772.3 | |
| 0.00 | 2.73 | 0.00 | 1.41 | 12.70 | 159.22 | -15.63 | 67.49 | 0.2857 | 1011.0 | 761.7 | |
| 0.00 | 2.64 | 0.00 | 1.37 | 12.94 | 158.88 | -15.96 | 67.12 | 0.2922 | 643.0 | 572.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 13.59 | 156.58 | -18.27 | 67.58 | 0.3310 | 825.0 | 566.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
