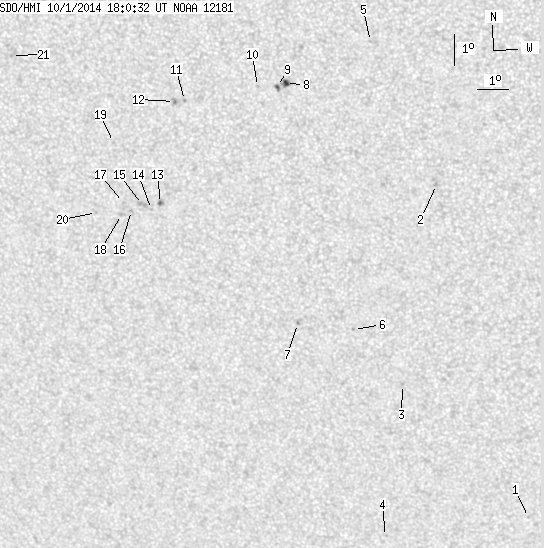

SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.31 | 34.16 | 2.31 | 18.72 | -13.46 | 160.30 | -14.54 | 144.22 | 0.4256 | -195.8 | -205.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.61 | -24.27 | 169.29 | -5.55 | 170.26 | 0.5236 | 316.0 | 321.4 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -13.22 | 166.80 | -8.04 | 158.14 | 0.3673 | 893.0 | 739.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -19.77 | 165.42 | -9.43 | 160.87 | 0.4721 | 800.0 | 674.9 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -25.02 | 164.47 | -10.37 | 162.70 | 0.5509 | 610.0 | 604.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -8.74 | 164.90 | -9.94 | 147.18 | 0.3161 | 841.0 | 705.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -17.97 | 163.95 | -10.89 | 156.60 | 0.4545 | 786.0 | 602.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -17.82 | 162.16 | -12.68 | 153.11 | 0.4641 | -817.0 | -761.5 | |
| 2.55 | 4.58 | 1.35 | 2.43 | -10.12 | 162.22 | -12.62 | 143.09 | 0.3598 | -1086.4 | -852.5 | |
| 0.88 | 2.73 | 0.47 | 1.45 | -10.22 | 161.97 | -12.88 | 142.71 | 0.3636 | -918.7 | -680.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -10.23 | 161.34 | -13.50 | 141.41 | 0.3701 | -886.0 | -707.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -10.74 | 159.01 | -15.83 | 137.77 | 0.4005 | 863.0 | 747.2 | |
| 0.00 | 2.29 | 0.00 | 1.24 | -10.78 | 158.69 | -16.15 | 137.27 | 0.4045 | 945.0 | 778.9 | |
| 0.88 | 1.94 | 0.49 | 1.07 | -14.04 | 158.02 | -16.82 | 141.21 | 0.4500 | -1054.6 | -909.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.25 | 157.72 | -17.13 | 140.99 | 0.4554 | -741.0 | -616.3 | |
| 0.00 | 4.14 | 0.00 | 2.30 | -14.10 | 157.44 | -17.41 | 140.32 | 0.4563 | -802.0 | -777.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.30 | 157.06 | -17.78 | 140.02 | 0.4625 | -909.0 | -737.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.05 | 156.82 | -18.02 | 139.29 | 0.4620 | -755.0 | -630.0 | |
| 0.00 | 2.73 | 0.00 | 1.53 | -14.44 | 156.72 | -18.12 | 139.69 | 0.4675 | -668.0 | -523.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.15 | 156.65 | -18.20 | 136.10 | 0.4421 | -661.0 | -541.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -14.41 | 155.91 | -18.93 | 138.40 | 0.4753 | -590.0 | -492.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -9.54 | 153.52 | -21.33 | 127.14 | 0.4518 | 795.0 | 562.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
