SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.45 | 0.00 | 3.44 | -21.27 | 198.81 | 24.52 | 219.56 | 0.6147 | 65.3 | 18.4 | |
|
previous
or next observation for the same group /

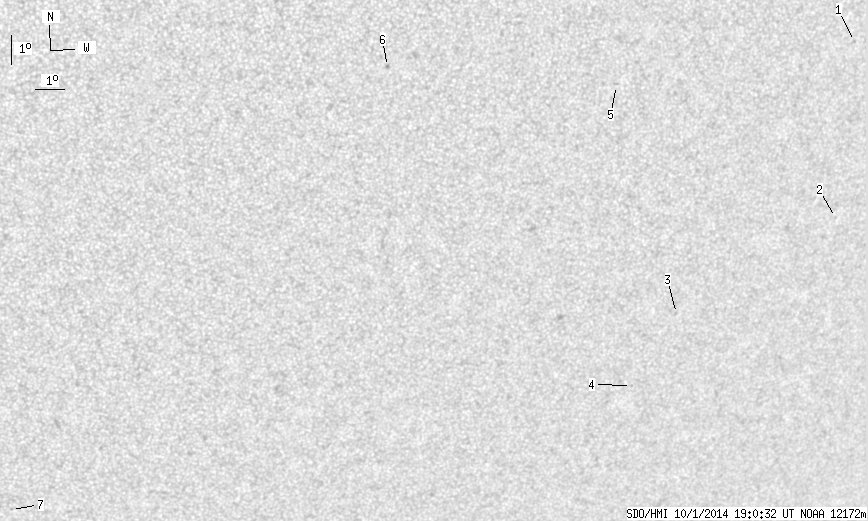

back to the solar disc SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.46 | -15.25 | 209.55 | 35.26 | 237.62 | 0.6618 | 606.0 | 514.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -21.09 | 210.19 | 35.89 | 230.84 | 0.7078 | 301.0 | 405.0 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -23.99 | 204.78 | 30.49 | 223.09 | 0.6810 | 524.0 | 401.8 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -26.45 | 203.73 | 29.44 | 219.52 | 0.6937 | 377.0 | 372.1 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -16.13 | 201.02 | 26.73 | 228.98 | 0.5750 | -323.0 | -401.0 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -15.13 | 193.15 | 18.86 | 220.47 | 0.4828 | -767.0 | -561.9 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -30.08 | 181.92 | 7.63 | 190.88 | 0.6110 | -261.0 | -285.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
