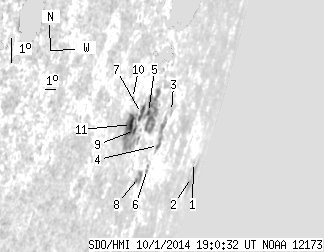

SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.62 | 125.61 | 26.14 | 283.86 | -15.94 | 248.71 | 74.42 | 251.84 | 0.9720 | -255.8 | 78.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 4.61 | -17.45 | 255.77 | 81.48 | 251.58 | 0.9949 | 208.0 | 219.2 | |
| 0.00 | 11.88 | 0.00 | 69.11 | -18.03 | 256.66 | 82.37 | 251.13 | 0.9964 | 300.0 | 17.0 | |
| 0.00 | 1.50 | 0.00 | 3.33 | -15.03 | 248.95 | 74.66 | 252.86 | 0.9757 | 470.0 | 394.6 | |
| 1.50 | 14.26 | 3.25 | 30.64 | -16.05 | 248.45 | 74.16 | 251.74 | 0.9746 | 116.3 | 372.0 | |
| 1.76 | 85.82 | 3.24 | 153.99 | -14.74 | 246.17 | 71.88 | 252.62 | 0.9643 | 153.4 | 28.4 | |
| 0.00 | 2.46 | 0.00 | 5.18 | -16.75 | 247.91 | 73.62 | 250.92 | 0.9732 | -344.0 | -308.1 | |
| 4.49 | -5.00 | 7.92 | -5.00 | -14.68 | 245.43 | 71.14 | 252.52 | 0.9610 | -306.8 | 999999 | |
| 0.00 | 7.31 | 0.00 | 14.70 | -16.91 | 247.08 | 72.79 | 250.60 | 0.9701 | 564.0 | 346.7 | |
| 1.94 | -5.00 | 3.38 | -5.00 | -15.19 | 245.15 | 70.86 | 251.95 | 0.9602 | -338.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 2.30 | -14.06 | 244.13 | 69.84 | 252.89 | 0.9541 | -285.0 | -306.9 | |
| 4.93 | -5.00 | 8.35 | -5.00 | -14.95 | 244.68 | 70.39 | 252.10 | 0.9577 | -770.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
