SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 34.08 | 2.19 | 18.56 | -13.46 | 161.30 | -12.99 | 147.87 | 0.4147 | -85.4 | -67.9 | |
|
previous
or next observation for the same group /

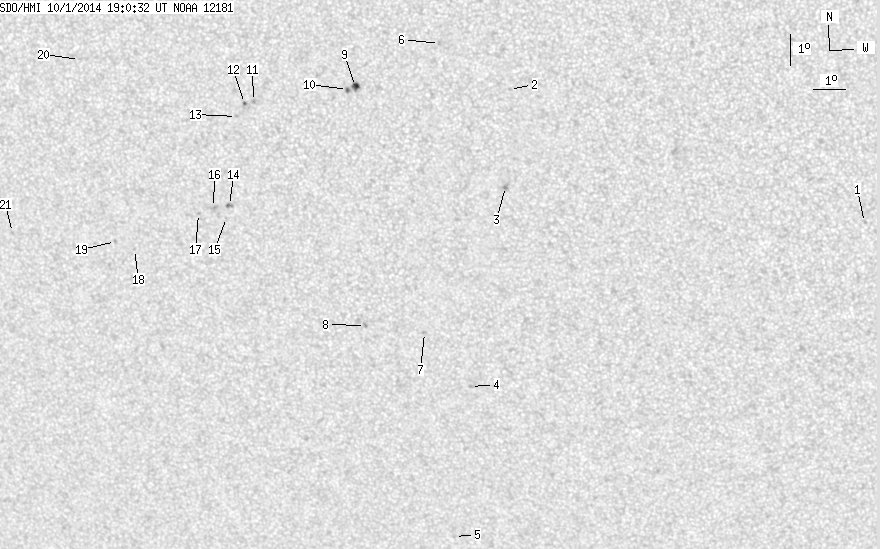

back to the solar disc SDO HMI 2014-10-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.75 | -14.33 | 177.91 | 3.62 | 189.69 | 0.3653 | -698.0 | -550.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.14 | 167.02 | -7.27 | 156.66 | 0.3158 | 849.0 | 673.1 | |
| 0.00 | 2.55 | 0.00 | 1.36 | -13.21 | 166.81 | -7.48 | 159.53 | 0.3639 | 893.0 | 787.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -19.76 | 165.41 | -8.88 | 161.90 | 0.4693 | 543.0 | 548.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -24.93 | 164.53 | -9.76 | 163.62 | 0.5472 | 422.0 | 470.5 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -8.73 | 164.91 | -9.38 | 148.65 | 0.3111 | 771.0 | 606.9 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -17.99 | 164.04 | -10.25 | 157.86 | 0.4509 | 367.0 | 430.6 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -17.81 | 162.16 | -12.14 | 154.10 | 0.4602 | -744.0 | -557.2 | |
| 2.99 | 4.93 | 1.58 | 2.61 | -10.13 | 162.26 | -12.03 | 144.44 | 0.3544 | -1060.6 | -802.6 | |
| 0.70 | 1.67 | 0.37 | 0.89 | -10.23 | 162.01 | -12.28 | 144.04 | 0.3581 | -984.9 | -838.0 | |
| 0.00 | 1.94 | 0.00 | 1.04 | -10.69 | 159.03 | -15.26 | 138.74 | 0.3939 | 979.0 | 726.6 | |
| 0.44 | 1.58 | 0.24 | 0.85 | -10.76 | 158.74 | -15.55 | 138.33 | 0.3978 | 964.4 | 781.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.18 | 158.46 | -15.83 | 138.53 | 0.4057 | 721.0 | 546.2 | |
| 0.00 | 2.99 | 0.00 | 1.65 | -14.02 | 158.05 | -16.24 | 142.17 | 0.4441 | -1100.0 | -877.8 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -14.41 | 157.93 | -16.36 | 142.50 | 0.4501 | -522.0 | -478.9 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -14.11 | 157.53 | -16.76 | 141.40 | 0.4501 | -841.0 | -669.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.32 | 157.03 | -17.26 | 140.87 | 0.4575 | -860.0 | -753.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -15.56 | 154.82 | -19.47 | 139.23 | 0.4937 | -796.0 | -563.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -15.33 | 154.22 | -20.07 | 138.04 | 0.4971 | -711.0 | -585.8 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -9.58 | 153.52 | -20.77 | 127.95 | 0.4454 | 744.0 | 603.9 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -15.19 | 150.78 | -23.51 | 133.34 | 0.5315 | -82.0 | -73.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
