SDO HMI 2014-10-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 37.20 | 1.72 | 20.49 | -15.08 | 161.34 | -12.40 | 150.28 | 0.4278 | -84.1 | -1.7 | |
|
previous
or next observation for the same group /

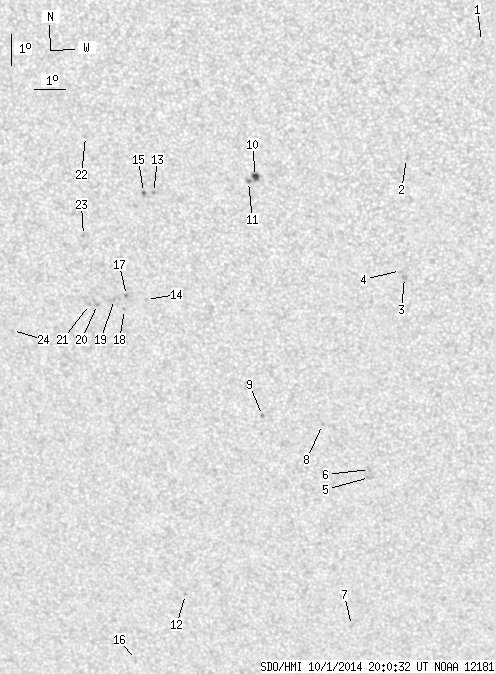

back to the solar disc SDO HMI 2014-10-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.40 | -5.82 | 169.31 | -4.43 | 160.46 | 0.2307 | 616.0 | 550.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.47 | 166.97 | -6.76 | 157.30 | 0.3024 | 643.0 | 553.6 | |
| 0.00 | 2.90 | 0.00 | 1.54 | -13.23 | 166.82 | -6.92 | 160.97 | 0.3613 | 824.0 | 731.5 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -13.01 | 166.70 | -7.04 | 160.46 | 0.3585 | 611.0 | 622.8 | |
| 0.00 | 2.02 | 0.00 | 1.13 | -19.79 | 165.44 | -8.30 | 163.02 | 0.4670 | 507.0 | 648.2 | |
| 0.00 | 2.20 | 0.00 | 1.23 | -19.52 | 165.45 | -8.28 | 162.87 | 0.4630 | 578.0 | 539.6 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -24.89 | 164.52 | -9.22 | 164.45 | 0.5444 | 150.0 | 296.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -18.05 | 164.03 | -9.71 | 158.97 | 0.4487 | 791.0 | 618.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -17.79 | 162.12 | -11.62 | 155.05 | 0.4566 | -923.0 | -779.6 | |
| 2.90 | 4.58 | 1.53 | 2.42 | -10.12 | 162.30 | -11.44 | 145.78 | 0.3487 | -1113.5 | -836.6 | |
| 0.00 | 2.64 | 0.00 | 1.40 | -10.28 | 162.07 | -11.66 | 145.52 | 0.3529 | -1037.0 | -823.2 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -23.94 | 159.01 | -14.72 | 155.35 | 0.5590 | 606.0 | 599.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.71 | 159.08 | -14.66 | 139.91 | 0.3878 | 968.0 | 796.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.12 | 158.65 | -15.09 | 144.31 | 0.4345 | -755.0 | -569.8 | |
| 0.35 | 1.67 | 0.19 | 0.90 | -10.72 | 158.76 | -14.98 | 139.32 | 0.3912 | 990.0 | 819.1 | |
| 0.00 | 2.11 | 0.00 | 1.31 | -26.30 | 156.97 | -16.76 | 154.42 | 0.6011 | 84.0 | 182.3 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.01 | 158.02 | -15.72 | 143.03 | 0.4390 | -1088.0 | -912.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.46 | 157.92 | -15.82 | 143.49 | 0.4456 | -749.0 | -553.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.15 | 157.62 | -16.12 | 142.55 | 0.4445 | -906.0 | -728.8 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -14.33 | 157.06 | -16.68 | 141.85 | 0.4521 | -895.0 | -739.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -14.34 | 156.80 | -16.94 | 141.43 | 0.4547 | -673.0 | -612.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -9.02 | 157.01 | -16.73 | 133.10 | 0.3910 | 568.0 | 486.9 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -12.14 | 156.77 | -16.97 | 138.08 | 0.4290 | -782.0 | -581.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.27 | 154.20 | -19.54 | 138.73 | 0.4911 | -692.0 | -594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
