SDO HMI 2014-10-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.28 | 12.06 | 5.06 | 11.66 | -13.70 | 117.80 | -55.94 | 110.36 | 0.8605 | 259.2 | 126.4 | |
|
previous
or next observation for the same group /

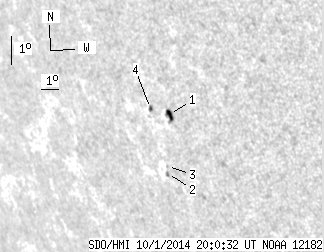

back to the solar disc SDO HMI 2014-10-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.31 | 7.57 | 4.11 | 7.23 | -13.36 | 118.16 | -55.58 | 110.10 | 0.8567 | 477.2 | 384.2 | |
| 0.00 | 1.58 | 0.00 | 1.58 | -15.33 | 117.29 | -56.45 | 112.00 | 0.8689 | -282.0 | -359.0 | |
| 0.00 | 0.62 | 0.00 | 0.61 | -15.09 | 117.39 | -56.35 | 111.77 | 0.8675 | -193.0 | -328.9 | |
| 0.97 | 2.29 | 0.95 | 2.24 | -13.28 | 117.13 | -56.61 | 109.67 | 0.8650 | 362.0 | 311.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
