SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.80 | 578.39 | 69.56 | 309.20 | -1.39 | 152.68 | -20.51 | 110.96 | 0.3766 | 508.6 | 271.6 | |
|
previous
or next observation for the same group /

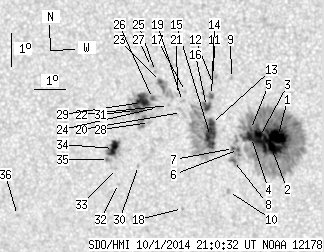

back to the solar disc SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.78 | 349.28 | 15.24 | 185.27 | -1.49 | 154.16 | -19.03 | 112.66 | 0.3547 | 1535.2 | 462.7 | |
| 18.04 | -1.00 | 9.57 | -1.00 | -1.80 | 153.96 | -19.22 | 113.24 | 0.3597 | 1291.0 | 999999 | |
| 12.32 | -1.00 | 6.55 | -1.00 | -1.48 | 153.59 | -19.60 | 112.01 | 0.3633 | 1193.6 | 999999 | |
| 7.48 | -1.00 | 3.98 | -1.00 | -1.52 | 153.33 | -19.86 | 111.84 | 0.3674 | 955.4 | 999999 | |
| 1.14 | -1.00 | 0.61 | -1.00 | -1.28 | 153.30 | -19.88 | 111.19 | 0.3663 | 855.2 | 999999 | |
| 0.97 | -1.00 | 0.52 | -1.00 | -1.90 | 152.91 | -20.28 | 112.34 | 0.3761 | 1069.5 | 999999 | |
| 0.79 | -1.00 | 0.42 | -1.00 | -1.88 | 152.75 | -20.44 | 112.11 | 0.3783 | 842.1 | 999999 | |
| 1.23 | -1.00 | 0.66 | -1.00 | -2.24 | 152.74 | -20.44 | 112.99 | 0.3807 | 723.9 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 0.24 | 152.70 | -20.48 | 106.72 | 0.3670 | 1039.0 | 814.6 | |
| 0.00 | 2.11 | 0.00 | 1.14 | -3.19 | 152.57 | -20.62 | 115.05 | 0.3898 | 890.0 | 674.2 | |
| 0.00 | 6.16 | 0.00 | 3.29 | 0.30 | 152.12 | -21.06 | 106.07 | 0.3756 | 806.0 | 700.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 0.03 | 152.12 | -21.06 | 106.77 | 0.3770 | 783.0 | 570.3 | |
| 3.78 | 109.94 | 2.03 | 59.09 | -1.15 | 152.05 | -21.13 | 109.65 | 0.3844 | 1039.7 | 243.5 | |
| 1.06 | -13.00 | 0.57 | -13.00 | -0.30 | 152.06 | -21.13 | 107.56 | 0.3797 | 1041.2 | 999999 | |
| 17.78 | -13.00 | 9.55 | -13.00 | -1.54 | 152.02 | -21.17 | 110.57 | 0.3873 | 1023.1 | 999999 | |
| 4.05 | -13.00 | 2.17 | -13.00 | -0.64 | 151.89 | -21.29 | 108.26 | 0.3840 | 1069.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -0.22 | 151.22 | -21.97 | 106.66 | 0.3921 | 531.0 | 448.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -3.77 | 151.07 | -22.12 | 114.75 | 0.4155 | -688.0 | -630.9 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -0.52 | 151.12 | -22.07 | 107.32 | 0.3952 | 583.0 | 501.2 | |
| 0.00 | 4.75 | 0.00 | 2.56 | -0.86 | 151.09 | -22.10 | 108.09 | 0.3974 | 490.0 | 122.7 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -0.32 | 150.96 | -22.23 | 106.70 | 0.3966 | 486.0 | 390.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -0.66 | 150.67 | -22.52 | 107.29 | 0.4028 | -898.0 | -644.8 | |
| 1.58 | 15.67 | 0.86 | 8.47 | 0.05 | 150.41 | -22.78 | 105.40 | 0.4033 | -1041.7 | -245.6 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -0.74 | 150.31 | -22.88 | 107.19 | 0.4087 | -566.0 | -489.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 0.34 | 150.24 | -22.94 | 104.59 | 0.4045 | -844.0 | -711.0 | |
| 0.88 | 51.23 | 0.48 | 27.89 | -0.48 | 150.15 | -23.04 | 106.45 | 0.4098 | -1088.2 | -715.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 0.49 | 150.11 | -23.07 | 104.15 | 0.4059 | -963.0 | -853.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -1.21 | 150.04 | -23.14 | 108.06 | 0.4151 | -407.0 | -357.4 | |
| 16.81 | -26.00 | 9.15 | -26.00 | -0.61 | 149.78 | -23.40 | 106.50 | 0.4160 | -1111.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -2.53 | 149.66 | -23.52 | 110.70 | 0.4281 | 505.0 | 398.6 | |
| 3.34 | -26.00 | 1.82 | -26.00 | -0.87 | 149.55 | -23.63 | 106.91 | 0.4207 | -904.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -3.11 | 148.99 | -24.20 | 111.36 | 0.4413 | 525.0 | 434.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -2.65 | 148.93 | -24.25 | 110.35 | 0.4394 | -832.0 | -654.6 | |
| 9.77 | 18.84 | 5.38 | 10.37 | -2.05 | 148.85 | -24.34 | 108.99 | 0.4374 | -1089.5 | -610.2 | |
| 0.00 | 2.90 | 0.00 | 1.60 | -2.39 | 148.68 | -24.51 | 109.59 | 0.4418 | -726.0 | -685.4 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -4.26 | 145.57 | -27.61 | 110.93 | 0.4969 | 613.0 | 383.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
