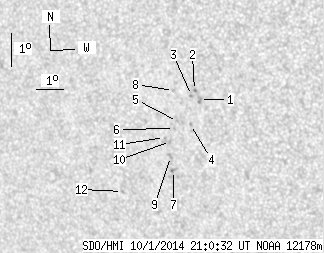

SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.76 | 0.00 | 10.88 | -5.21 | 139.24 | -33.94 | 108.52 | 0.5887 | -724.1 | -626.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.43 | 0.00 | 2.07 | -4.18 | 140.09 | -33.09 | 107.33 | 0.5726 | -732.0 | -648.9 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -3.92 | 139.92 | -33.26 | 106.80 | 0.5738 | -766.0 | -619.3 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -4.08 | 139.81 | -33.38 | 107.00 | 0.5760 | -812.0 | -721.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -4.97 | 139.72 | -33.46 | 108.43 | 0.5812 | -910.0 | -745.5 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -4.91 | 139.26 | -33.93 | 108.07 | 0.5872 | -657.0 | -545.1 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -5.13 | 139.13 | -34.05 | 108.36 | 0.5898 | -622.0 | -507.6 | |
| 0.00 | 2.29 | 0.00 | 1.41 | -6.43 | 139.00 | -34.18 | 110.35 | 0.5977 | -793.0 | -719.2 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -3.97 | 139.16 | -34.02 | 106.48 | 0.5843 | -849.0 | -773.1 | |
| 0.00 | 2.64 | 0.00 | 1.63 | -6.00 | 138.93 | -34.26 | 109.64 | 0.5966 | -788.0 | -610.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -5.54 | 138.96 | -34.23 | 108.92 | 0.5940 | -587.0 | -467.7 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -5.43 | 138.75 | -34.44 | 108.63 | 0.5963 | -526.0 | -480.6 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -7.21 | 137.05 | -36.14 | 110.44 | 0.6267 | -647.0 | -539.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
