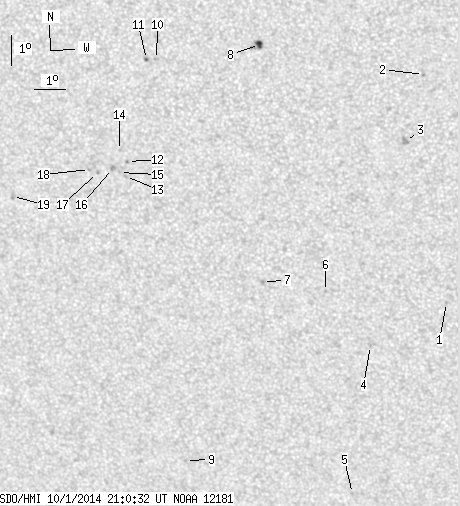

SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 36.09 | 1.82 | 19.69 | -14.34 | 161.28 | -11.91 | 150.78 | 0.4145 | -55.1 | -84.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -18.38 | 167.93 | -5.26 | 168.39 | 0.4340 | 761.0 | 608.0 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -11.03 | 167.40 | -5.78 | 161.98 | 0.3210 | 748.0 | 625.9 | |
| 0.00 | 4.67 | 0.00 | 2.47 | -13.16 | 166.80 | -6.39 | 162.27 | 0.3574 | 871.0 | 789.7 | |
| 0.00 | 1.76 | 0.00 | 0.98 | -19.84 | 165.44 | -7.75 | 164.12 | 0.4654 | 808.0 | 687.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -24.95 | 164.53 | -8.65 | 165.40 | 0.5430 | 681.0 | 509.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -18.07 | 164.09 | -9.10 | 160.20 | 0.4456 | 866.0 | 700.3 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -17.81 | 162.08 | -11.10 | 156.05 | 0.4535 | -956.0 | -727.1 | |
| 2.99 | 7.31 | 1.58 | 3.85 | -10.17 | 162.37 | -10.82 | 147.33 | 0.3437 | -1097.2 | -806.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -23.92 | 159.01 | -14.17 | 156.14 | 0.5555 | 709.0 | 624.4 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -10.72 | 159.13 | -14.06 | 141.11 | 0.3818 | 961.0 | 788.3 | |
| 0.44 | 1.06 | 0.24 | 0.57 | -10.73 | 158.81 | -14.37 | 140.50 | 0.3851 | 982.8 | 905.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -13.99 | 158.01 | -15.17 | 143.98 | 0.4337 | -887.0 | -842.2 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -14.47 | 157.92 | -15.27 | 144.47 | 0.4407 | -725.0 | -478.8 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -13.64 | 157.78 | -15.40 | 143.08 | 0.4315 | -794.0 | -578.7 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.35 | 157.73 | -15.45 | 143.98 | 0.4408 | -676.0 | -579.3 | |
| 0.00 | 2.73 | 0.00 | 1.50 | -14.23 | 157.52 | -15.67 | 143.43 | 0.4413 | -808.0 | -704.6 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -14.37 | 157.02 | -16.16 | 142.78 | 0.4477 | -804.0 | -671.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.28 | 156.77 | -16.42 | 142.23 | 0.4490 | -647.0 | -585.4 | |
| 0.00 | 2.29 | 0.00 | 1.30 | -15.25 | 154.18 | -19.01 | 139.48 | 0.4856 | -685.0 | -611.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
