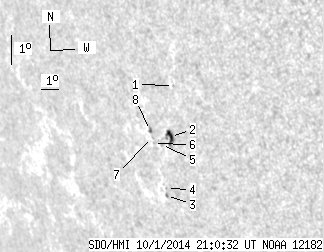

SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.07 | 16.73 | 5.71 | 15.85 | -13.50 | 117.96 | -55.22 | 110.37 | 0.8540 | 259.3 | 142.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.80 | -11.68 | 118.96 | -54.23 | 108.63 | 0.8406 | 310.0 | 280.8 | |
| 5.28 | 9.95 | 4.95 | 9.34 | -13.36 | 118.26 | -54.92 | 110.31 | 0.8511 | 570.6 | 298.1 | |
| 0.00 | 1.06 | 0.00 | 1.03 | -15.33 | 117.30 | -55.88 | 112.19 | 0.8643 | -520.0 | -425.3 | |
| 0.00 | 0.70 | 0.00 | 0.69 | -15.10 | 117.40 | -55.79 | 111.96 | 0.8629 | -384.0 | -401.4 | |
| 0.00 | 1.06 | 0.00 | 1.01 | -13.67 | 117.66 | -55.52 | 110.46 | 0.8570 | -268.0 | -136.8 | |
| 0.00 | 0.44 | 0.00 | 0.43 | -13.68 | 117.22 | -55.97 | 110.33 | 0.8607 | 199.0 | 167.6 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -13.50 | 117.17 | -56.01 | 110.11 | 0.8606 | 470.0 | 409.8 | |
| 0.79 | 2.11 | 0.76 | 2.04 | -13.27 | 117.20 | -55.99 | 109.87 | 0.8599 | 533.2 | 381.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
