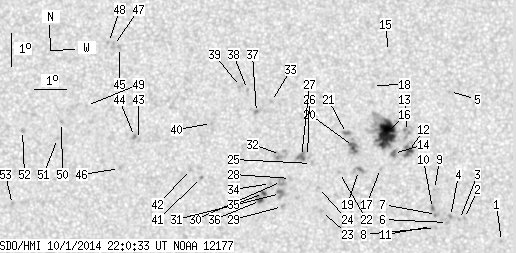

SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.43 | 206.13 | 22.66 | 103.03 | 12.33 | 168.86 | -3.77 | 265.00 | 0.1238 | -306.8 | -92.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.55 | 174.03 | 1.40 | 334.27 | 0.0556 | -968.0 | -770.5 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 10.25 | 172.91 | 0.27 | 355.68 | 0.0624 | -883.0 | -601.8 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 10.22 | 172.75 | 0.12 | 358.08 | 0.0617 | -890.0 | -733.5 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 10.31 | 172.48 | -0.15 | 2.41 | 0.0633 | -1092.0 | -852.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.08 | 172.45 | -0.18 | 1.38 | 0.1291 | -746.0 | -573.7 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 10.13 | 172.39 | -0.25 | 4.03 | 0.0603 | -868.0 | -700.1 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 10.37 | 172.05 | -0.58 | 8.85 | 0.0651 | -955.0 | -843.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 9.98 | 172.02 | -0.61 | 10.40 | 0.0585 | -725.0 | -536.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.12 | 171.99 | -0.64 | 8.12 | 0.0783 | -954.0 | -707.7 | |
| 0.00 | 2.99 | 0.00 | 1.49 | 10.55 | 171.93 | -0.70 | 10.18 | 0.0686 | -1047.0 | -789.0 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 10.01 | 171.90 | -0.73 | 12.30 | 0.0594 | -611.0 | -500.6 | |
| 3.35 | 10.56 | 1.67 | 5.26 | 12.26 | 171.19 | -1.44 | 14.22 | 0.1006 | -1166.6 | -803.2 | |
| 0.00 | 8.63 | 0.00 | 4.30 | 12.87 | 171.16 | -1.48 | 13.14 | 0.1109 | -695.0 | -714.1 | |
| 1.41 | 3.35 | 0.70 | 1.67 | 12.20 | 170.73 | -1.90 | 18.67 | 0.1018 | -1128.4 | -860.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.29 | 170.55 | -2.08 | 13.18 | 0.1542 | -742.0 | -597.3 | |
| 33.72 | 65.93 | 16.81 | 32.88 | 12.81 | 170.51 | -2.12 | 18.73 | 0.1130 | -1207.4 | -486.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.75 | 170.34 | -2.30 | 24.00 | 0.0970 | -868.0 | -669.0 | |
| 0.00 | 2.11 | 0.00 | 1.06 | 14.25 | 170.07 | -2.57 | 18.25 | 0.1392 | -790.0 | -624.8 | |
| 0.00 | 5.37 | 0.00 | 2.67 | 11.69 | 169.66 | -2.97 | 30.23 | 0.1013 | -752.0 | -864.5 | |
| 3.52 | 11.97 | 1.76 | 5.97 | 12.41 | 169.50 | -3.13 | 28.16 | 0.1136 | -1155.5 | -864.6 | |
| 0.79 | 2.99 | 0.40 | 1.49 | 12.80 | 169.28 | -3.35 | 28.17 | 0.1214 | -965.6 | -785.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.62 | 169.08 | -3.55 | 35.19 | 0.1058 | -921.0 | -722.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 10.45 | 168.54 | -4.09 | 46.89 | 0.0966 | 783.0 | 697.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.17 | 168.44 | -4.19 | 42.51 | 0.1066 | 819.0 | 599.2 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 11.89 | 168.22 | -4.42 | 39.69 | 0.1186 | -681.0 | -533.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 12.10 | 168.09 | -4.54 | 39.34 | 0.1228 | -468.0 | -490.8 | |
| 0.00 | 7.22 | 0.00 | 3.60 | 12.10 | 167.90 | -4.73 | 40.46 | 0.1248 | 70.0 | 128.7 | |
| 0.00 | 2.38 | 0.00 | 1.19 | 11.43 | 167.58 | -5.06 | 46.15 | 0.1203 | 799.0 | 568.0 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 10.59 | 167.35 | -5.29 | 52.97 | 0.1140 | 862.0 | 645.6 | |
| 0.00 | 5.46 | 0.00 | 2.72 | 11.34 | 167.30 | -5.33 | 48.21 | 0.1227 | 575.0 | 873.8 | |
| 0.00 | 5.99 | 0.00 | 2.99 | 10.98 | 167.28 | -5.36 | 50.64 | 0.1190 | 1225.0 | 943.6 | |
| 0.00 | 9.77 | 0.00 | 4.88 | 12.15 | 167.26 | -5.38 | 43.79 | 0.1330 | 806.0 | 749.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 13.75 | 166.94 | -5.69 | 37.98 | 0.1572 | 843.0 | 616.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.28 | 166.97 | -5.67 | 50.31 | 0.1264 | 1070.0 | 794.0 | |
| 1.06 | 7.31 | 0.53 | 3.65 | 10.97 | 166.76 | -5.88 | 53.22 | 0.1261 | 1121.9 | 843.5 | |
| 1.58 | -35.00 | 0.79 | -35.00 | 10.76 | 166.67 | -5.96 | 55.00 | 0.1252 | 1076.3 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.24 | 13.41 | 166.49 | -6.15 | 41.53 | 0.1578 | 1159.0 | 925.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.10 | 166.19 | -6.44 | 40.02 | 0.1700 | 889.0 | 736.3 | |
| 0.00 | 2.20 | 0.00 | 1.11 | 14.19 | 165.97 | -6.66 | 40.61 | 0.1736 | 890.0 | 688.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.06 | 165.10 | -7.53 | 48.79 | 0.1705 | 887.0 | 660.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.43 | 164.84 | -7.80 | 57.85 | 0.1578 | -1088.0 | -933.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 11.67 | 164.49 | -8.14 | 57.68 | 0.1649 | -869.0 | -629.2 | |
| 0.00 | 2.20 | 0.00 | 1.11 | 12.54 | 162.85 | -9.79 | 58.04 | 0.1965 | 826.0 | 546.6 | |
| 0.00 | 2.38 | 0.00 | 1.20 | 12.63 | 162.72 | -9.91 | 57.98 | 0.1991 | 1119.0 | 868.0 | |
| 0.00 | 1.85 | 0.00 | 0.94 | 15.31 | 162.13 | -10.50 | 49.21 | 0.2333 | 918.0 | 738.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 11.66 | 162.29 | -10.35 | 63.33 | 0.1977 | 788.0 | 623.4 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 15.37 | 161.94 | -10.70 | 49.52 | 0.2363 | 970.0 | 791.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 15.46 | 161.77 | -10.86 | 49.64 | 0.2394 | 833.0 | 698.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 13.54 | 161.18 | -11.46 | 57.86 | 0.2291 | 712.0 | 469.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 13.01 | 160.41 | -12.22 | 61.40 | 0.2360 | 817.0 | 684.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 12.52 | 160.31 | -12.32 | 63.45 | 0.2339 | 754.0 | 669.0 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 12.74 | 159.20 | -13.44 | 64.46 | 0.2523 | 895.0 | 802.4 | |
| 0.00 | 1.94 | 0.00 | 0.99 | 10.50 | 158.99 | -13.64 | 73.31 | 0.2432 | 906.0 | 655.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
