SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.34 | 0.00 | 3.81 | 5.33 | 137.87 | -34.76 | 90.38 | 0.5696 | 53.8 | -76.1 | |
|
previous
or next observation for the same group /

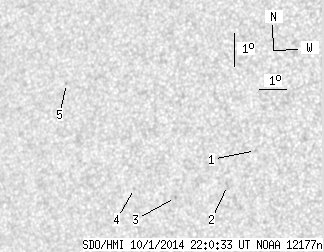

back to the solar disc SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.41 | 6.05 | 140.45 | -32.18 | 89.29 | 0.5318 | -785.0 | -619.8 | |
| 0.00 | 2.82 | 0.00 | 1.66 | 4.94 | 139.51 | -33.12 | 91.23 | 0.5466 | -688.0 | -576.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 4.46 | 137.64 | -34.99 | 91.80 | 0.5742 | 756.0 | 687.3 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 4.63 | 136.11 | -36.52 | 91.28 | 0.5956 | 643.0 | 533.1 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 7.59 | 133.26 | -39.38 | 86.20 | 0.6325 | 343.0 | 361.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
