SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.33 | 118.54 | 14.24 | 72.86 | -10.08 | 140.40 | -32.24 | 117.25 | 0.5931 | 437.0 | 282.9 | |
|
previous
or next observation for the same group /

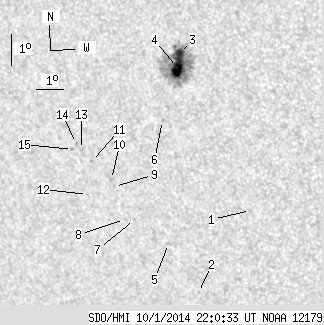

back to the solar disc SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.27 | -14.09 | 142.73 | -29.90 | 125.09 | 0.5932 | 440.0 | 420.6 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -16.88 | 140.36 | -32.27 | 126.84 | 0.6407 | 545.0 | 440.7 | |
| 5.90 | 104.93 | 3.59 | 64.06 | -9.25 | 140.80 | -31.84 | 116.31 | 0.5830 | 1046.0 | 371.5 | |
| 17.43 | -3.00 | 10.65 | -3.00 | -9.70 | 140.68 | -31.96 | 116.91 | 0.5873 | 1108.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -15.35 | 139.53 | -33.10 | 124.14 | 0.6386 | 507.0 | 462.9 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -11.40 | 139.93 | -32.70 | 118.92 | 0.6073 | 698.0 | 504.9 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -14.65 | 138.39 | -34.25 | 122.32 | 0.6466 | -698.0 | -488.4 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.68 | 138.00 | -34.63 | 122.07 | 0.6510 | -791.0 | -710.3 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -13.64 | 137.81 | -34.82 | 120.52 | 0.6465 | -562.0 | -444.2 | |
| 0.00 | 2.55 | 0.00 | 1.65 | -13.42 | 137.74 | -34.90 | 120.17 | 0.6460 | -644.0 | -469.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -12.89 | 137.07 | -35.56 | 118.98 | 0.6504 | -597.0 | -495.0 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -13.97 | 136.73 | -35.90 | 120.21 | 0.6609 | -548.0 | -505.4 | |
| 0.00 | 1.32 | 0.00 | 0.86 | -12.53 | 136.75 | -35.89 | 118.28 | 0.6520 | -601.0 | -499.7 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -12.36 | 136.59 | -36.05 | 117.92 | 0.6529 | -757.0 | -661.6 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -12.56 | 136.40 | -36.23 | 118.08 | 0.6562 | -651.0 | -529.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
