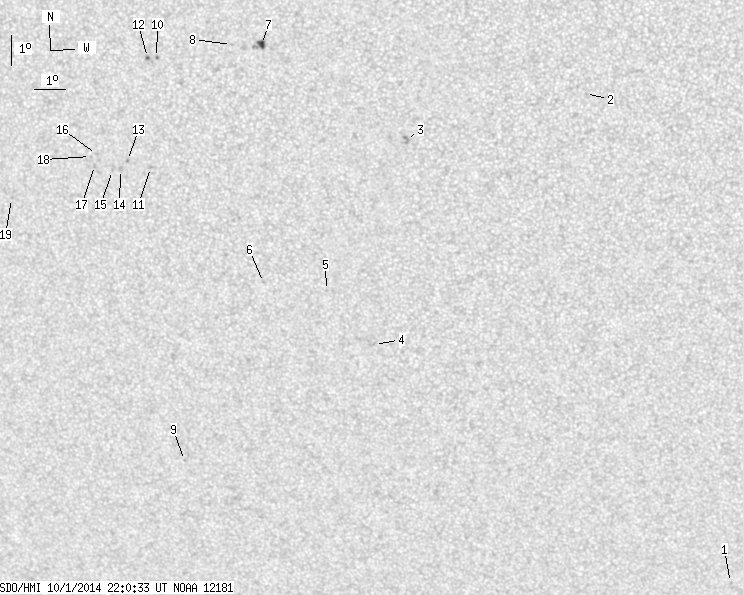

SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 32.22 | 1.90 | 17.50 | -13.99 | 161.66 | -10.97 | 152.01 | 0.4054 | -204.4 | -173.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.59 | -28.14 | 177.22 | 4.58 | 187.03 | 0.5775 | -291.0 | -345.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.63 | 172.33 | -0.30 | 179.05 | 0.3159 | 575.0 | 386.5 | |
| 0.00 | 3.52 | 0.00 | 1.86 | -13.12 | 166.80 | -5.83 | 163.70 | 0.3542 | 883.0 | 786.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -19.84 | 165.56 | -7.08 | 165.43 | 0.4626 | 736.0 | 596.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -18.06 | 164.11 | -8.53 | 161.35 | 0.4426 | 780.0 | 619.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -17.83 | 162.10 | -10.53 | 157.18 | 0.4503 | -862.0 | -585.6 | |
| 3.08 | 7.48 | 1.62 | 3.94 | -10.19 | 162.40 | -10.23 | 148.80 | 0.3389 | -1086.3 | -807.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.21 | 161.47 | -11.16 | 146.57 | 0.3473 | -725.0 | -617.9 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -23.94 | 158.99 | -13.64 | 156.96 | 0.5527 | 381.0 | 369.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -10.67 | 159.11 | -13.52 | 142.12 | 0.3759 | 1001.0 | 856.2 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -14.18 | 158.72 | -13.91 | 146.57 | 0.4248 | -808.0 | -669.5 | |
| 0.53 | 1.58 | 0.28 | 0.85 | -10.68 | 158.83 | -13.81 | 141.55 | 0.3788 | 965.8 | 834.7 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.97 | 158.00 | -14.63 | 144.95 | 0.4285 | -1015.0 | -851.0 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -14.27 | 157.76 | -14.87 | 144.91 | 0.4345 | -765.0 | -600.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -14.31 | 157.50 | -15.13 | 144.50 | 0.4374 | -697.0 | -623.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.81 | 157.02 | -15.61 | 142.95 | 0.4356 | -706.0 | -611.2 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -14.17 | 156.93 | -15.70 | 143.29 | 0.4408 | -776.0 | -631.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -13.88 | 156.82 | -15.81 | 142.70 | 0.4383 | -652.0 | -431.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.33 | 154.14 | -18.49 | 140.36 | 0.4814 | -603.0 | -522.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
