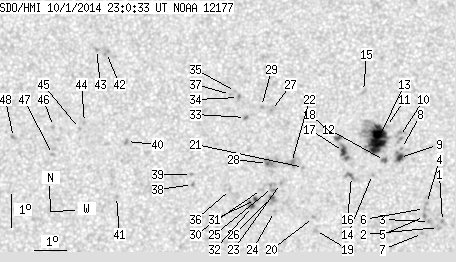

SDO HMI 2014-10-01 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 189.91 | 20.85 | 94.82 | 12.36 | 168.79 | -3.29 | 281.24 | 0.1203 | -218.5 | -91.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.79 | 10.34 | 172.51 | 0.43 | 353.41 | 0.0643 | -1018.0 | -794.4 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 10.16 | 172.39 | 0.30 | 355.04 | 0.0609 | -757.0 | -717.4 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 10.34 | 172.11 | 0.03 | 359.52 | 0.0638 | -1089.0 | -899.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 10.88 | 172.02 | -0.06 | 0.81 | 0.0733 | -1013.0 | -773.9 | |
| 0.00 | 1.76 | 0.00 | 0.87 | 10.49 | 171.96 | -0.12 | 1.80 | 0.0665 | -1080.0 | -879.0 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 10.73 | 171.96 | -0.12 | 1.69 | 0.0707 | -767.0 | -615.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.98 | 171.90 | -0.18 | 3.14 | 0.0576 | -849.0 | -669.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.54 | 171.25 | -0.83 | 7.88 | 0.1032 | -718.0 | -579.1 | |
| 2.91 | 7.40 | 1.45 | 3.68 | 12.27 | 171.19 | -0.89 | 8.86 | 0.0987 | -1178.1 | -956.3 | |
| 0.00 | 6.96 | 0.00 | 3.47 | 12.90 | 171.19 | -0.89 | 7.96 | 0.1096 | -668.0 | -749.5 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 13.20 | 170.79 | -1.29 | 10.95 | 0.1159 | -688.0 | -557.0 | |
| 0.79 | 3.35 | 0.39 | 1.67 | 12.18 | 170.73 | -1.35 | 13.53 | 0.0987 | -1134.0 | -917.4 | |
| 30.55 | 62.07 | 15.23 | 30.94 | 12.81 | 170.52 | -1.57 | 14.04 | 0.1103 | -1225.7 | -536.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 11.75 | 170.37 | -1.71 | 18.36 | 0.0934 | -942.0 | -712.5 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 14.26 | 170.07 | -2.01 | 14.45 | 0.1366 | -835.0 | -567.1 | |
| 0.00 | 5.63 | 0.00 | 2.80 | 11.69 | 169.72 | -2.36 | 24.80 | 0.0965 | -1306.0 | -851.6 | |
| 3.08 | 16.20 | 1.54 | 8.07 | 12.44 | 169.47 | -2.61 | 23.91 | 0.1102 | -1116.9 | -827.4 | |
| 1.23 | -17.00 | 0.61 | -17.00 | 12.83 | 169.28 | -2.80 | 23.96 | 0.1177 | -921.9 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 10.06 | 168.64 | -3.44 | 45.12 | 0.0839 | 690.0 | 611.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 10.45 | 168.57 | -3.51 | 42.49 | 0.0895 | 832.0 | 691.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.95 | 168.25 | -3.83 | 35.43 | 0.1133 | -890.0 | -672.4 | |
| 0.00 | 6.16 | 0.00 | 3.07 | 12.10 | 167.88 | -4.20 | 37.17 | 0.1192 | 225.0 | 137.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 11.47 | 167.55 | -4.53 | 42.83 | 0.1144 | 832.0 | 652.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 10.62 | 167.38 | -4.70 | 49.48 | 0.1065 | 924.0 | 741.3 | |
| 0.00 | 5.55 | 0.00 | 2.77 | 11.35 | 167.31 | -4.78 | 45.06 | 0.1159 | 615.0 | 794.2 | |
| 0.88 | 5.55 | 0.44 | 2.76 | 11.04 | 167.28 | -4.80 | 47.15 | 0.1126 | 1282.1 | 902.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 13.67 | 167.23 | -4.85 | 33.99 | 0.1475 | 899.0 | 687.6 | |
| 0.44 | 10.74 | 0.22 | 5.36 | 12.07 | 167.14 | -4.94 | 41.86 | 0.1268 | 1093.6 | 727.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.79 | 166.92 | -5.16 | 35.19 | 0.1523 | 821.0 | 788.9 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 11.28 | 166.97 | -5.11 | 47.38 | 0.1193 | 1038.0 | 823.9 | |
| 1.06 | 6.34 | 0.53 | 3.16 | 10.98 | 166.79 | -5.29 | 50.30 | 0.1182 | 1124.1 | 913.4 | |
| 0.88 | -31.00 | 0.44 | -31.00 | 10.77 | 166.70 | -5.38 | 52.18 | 0.1172 | 1134.9 | 999999 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 13.45 | 166.43 | -5.65 | 39.02 | 0.1527 | 1163.0 | 946.9 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 14.05 | 166.20 | -5.88 | 37.70 | 0.1633 | 950.0 | 831.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.23 | 166.10 | -5.98 | 37.46 | 0.1667 | 761.0 | 603.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.27 | 166.02 | -6.07 | 52.18 | 0.1318 | 829.0 | 698.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.14 | 165.95 | -6.13 | 38.51 | 0.1671 | 868.0 | 740.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.41 | 164.84 | -7.24 | 56.08 | 0.1495 | -1100.0 | -873.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.71 | 164.80 | -7.28 | 54.55 | 0.1530 | -852.0 | -585.5 | |
| 0.00 | 2.20 | 0.00 | 1.11 | 12.67 | 162.76 | -9.32 | 56.24 | 0.1910 | 1048.0 | 831.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.01 | 162.50 | -9.58 | 64.80 | 0.1813 | 903.0 | 661.6 | |
| 0.00 | 3.26 | 0.00 | 1.66 | 15.35 | 162.02 | -10.06 | 47.90 | 0.2281 | 826.0 | 790.5 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 15.44 | 161.70 | -10.38 | 48.47 | 0.2331 | 840.0 | 692.4 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 13.22 | 161.42 | -10.66 | 57.29 | 0.2149 | 858.0 | 751.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.04 | 161.28 | -10.81 | 58.38 | 0.2155 | 880.0 | 714.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 13.08 | 160.46 | -11.62 | 59.95 | 0.2278 | 835.0 | 677.9 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 12.24 | 160.46 | -11.62 | 63.32 | 0.2212 | 895.0 | 652.4 | |
| 0.00 | 2.38 | 0.00 | 1.21 | 12.72 | 159.22 | -12.87 | 63.60 | 0.2436 | 911.0 | 699.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
