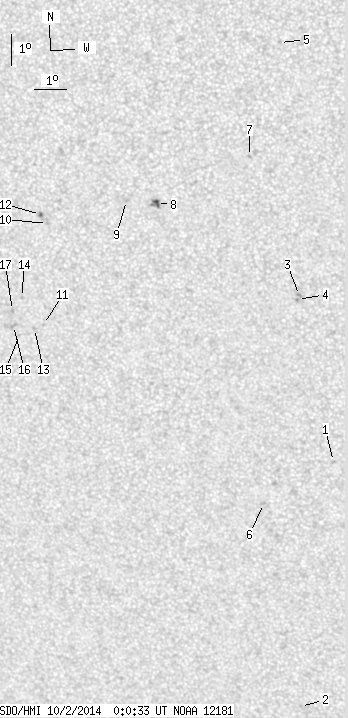

SDO HMI 2014-10-02 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 27.75 | 1.53 | 14.89 | -13.13 | 162.09 | -9.44 | 154.36 | 0.3790 | 55.6 | -45.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -18.47 | 167.76 | -3.77 | 171.64 | 0.4314 | 765.0 | 645.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -26.94 | 166.39 | -5.14 | 171.78 | 0.5614 | 67.0 | 75.9 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -13.08 | 166.81 | -4.72 | 166.66 | 0.3489 | 959.0 | 839.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.21 | 166.75 | -4.78 | 166.57 | 0.3512 | 898.0 | 733.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -5.19 | 166.32 | -5.21 | 156.24 | 0.2255 | 645.0 | 494.1 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -19.89 | 165.48 | -6.05 | 167.49 | 0.4597 | 872.0 | 670.4 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.72 | 165.36 | -6.17 | 158.17 | 0.2869 | 886.0 | 615.8 | |
| 2.29 | 5.72 | 1.20 | 3.00 | -10.20 | 162.47 | -9.06 | 151.82 | 0.3295 | -1105.8 | -826.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.15 | 161.55 | -9.98 | 149.36 | 0.3363 | -738.0 | -579.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.93 | 159.06 | -12.47 | 144.76 | 0.3691 | 812.0 | 695.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.15 | 158.77 | -12.76 | 148.75 | 0.4147 | -764.0 | -632.5 | |
| 0.62 | 1.85 | 0.33 | 0.98 | -10.65 | 158.85 | -12.68 | 143.86 | 0.3674 | 1061.6 | 872.6 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -14.29 | 158.47 | -13.06 | 148.35 | 0.4190 | -688.0 | -468.0 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -13.30 | 158.12 | -13.41 | 146.33 | 0.4089 | -716.0 | -614.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.49 | 157.98 | -13.55 | 147.66 | 0.4258 | -395.0 | -419.8 | |
| 0.00 | 2.91 | 0.00 | 1.59 | -14.21 | 157.81 | -13.72 | 146.96 | 0.4235 | -777.0 | -711.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.73 | 157.81 | -13.72 | 146.31 | 0.4172 | -937.0 | -806.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
