SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.45 | 0.00 | 3.82 | -20.60 | 205.39 | 34.96 | 230.66 | 0.7046 | 110.6 | 111.2 | |
|
previous
or next observation for the same group /

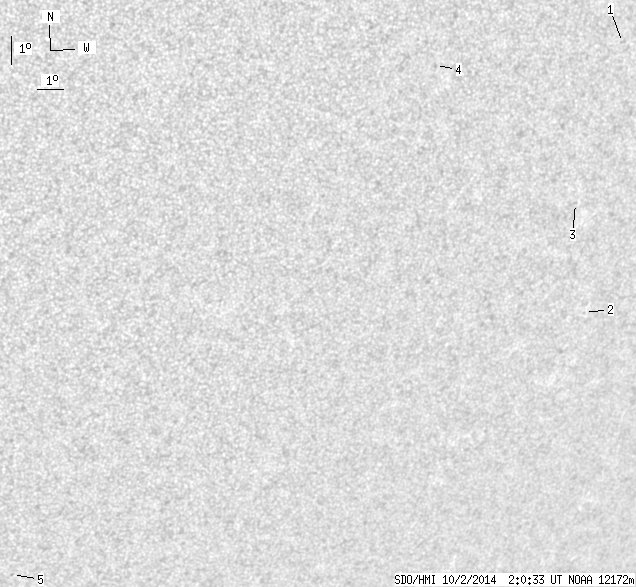

back to the solar disc SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 1.17 | -15.34 | 209.64 | 39.21 | 240.16 | 0.7052 | 610.0 | 436.9 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -24.42 | 210.80 | 40.37 | 230.20 | 0.7700 | 289.0 | 356.7 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -20.57 | 209.10 | 38.67 | 233.42 | 0.7308 | 550.0 | 449.8 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -15.56 | 202.50 | 32.07 | 234.75 | 0.6286 | -460.0 | -452.8 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -32.67 | 190.55 | 20.12 | 204.75 | 0.6940 | -436.0 | -471.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
