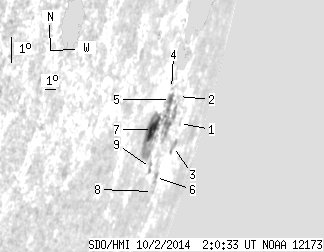

SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.91 | 99.88 | 37.40 | 239.46 | -15.12 | 245.61 | 75.18 | 252.85 | 0.9774 | -229.3 | 111.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 2.95 | -15.26 | 248.69 | 78.26 | 253.25 | 0.9872 | 357.0 | 377.1 | |
| 0.00 | 0.62 | 0.00 | 1.60 | -14.25 | 247.31 | 76.88 | 254.04 | 0.9827 | 482.0 | 409.7 | |
| 0.00 | 6.08 | 0.00 | 18.64 | -16.00 | 248.76 | 78.33 | 252.53 | 0.9877 | 377.0 | 351.7 | |
| 0.00 | 0.79 | 0.00 | 1.85 | -13.84 | 245.96 | 75.53 | 254.21 | 0.9780 | 108.0 | 173.8 | |
| 3.26 | 81.11 | 7.78 | 187.75 | -14.21 | 246.20 | 75.77 | 253.88 | 0.9791 | 436.8 | 68.5 | |
| 0.00 | 4.76 | 0.00 | 12.84 | -16.80 | 247.18 | 76.75 | 251.46 | 0.9837 | 367.0 | 223.8 | |
| 13.65 | -5.00 | 29.62 | -5.00 | -14.99 | 244.77 | 74.34 | 252.83 | 0.9745 | -522.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 3.92 | -17.27 | 247.38 | 76.95 | 251.02 | 0.9846 | 102.0 | 61.6 | |
| 0.00 | 4.14 | 0.00 | 9.91 | -16.34 | 245.94 | 75.51 | 251.70 | 0.9795 | 102.0 | 41.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
