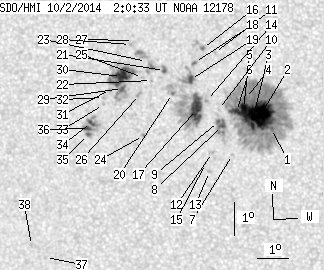

SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.03 | 566.99 | 73.63 | 298.02 | -1.45 | 152.75 | -17.68 | 114.31 | 0.3344 | 590.0 | 240.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.85 | 321.71 | 0.96 | 167.84 | -2.03 | 154.54 | -15.89 | 118.27 | 0.3121 | 987.9 | 440.7 | |
| 51.52 | -1.00 | 26.86 | -1.00 | -1.62 | 154.20 | -16.23 | 116.58 | 0.3138 | 1503.2 | 999999 | |
| 5.37 | -1.00 | 2.81 | -1.00 | -1.93 | 153.91 | -16.52 | 117.04 | 0.3204 | 1106.0 | 999999 | |
| 2.20 | -1.00 | 1.15 | -1.00 | -1.15 | 153.73 | -16.70 | 114.58 | 0.3173 | 779.0 | 999999 | |
| 8.19 | -1.00 | 4.28 | -1.00 | -1.45 | 153.67 | -16.76 | 115.36 | 0.3205 | 1175.2 | 999999 | |
| 5.90 | -1.00 | 3.09 | -1.00 | -1.55 | 153.45 | -16.98 | 115.33 | 0.3245 | 929.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -2.86 | 153.30 | -17.13 | 118.66 | 0.3366 | 410.0 | 389.5 | |
| 3.26 | 16.03 | 1.71 | 8.42 | -1.99 | 153.00 | -17.43 | 115.93 | 0.3343 | 994.6 | 654.9 | |
| 0.97 | -8.00 | 0.51 | -8.00 | -1.87 | 152.88 | -17.55 | 115.45 | 0.3353 | 897.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -1.51 | 152.88 | -17.55 | 114.47 | 0.3326 | 845.0 | 633.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 0.21 | 152.76 | -17.67 | 109.47 | 0.3233 | 895.0 | 688.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -2.82 | 152.67 | -17.76 | 117.67 | 0.3454 | 751.0 | 538.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -3.40 | 152.57 | -17.86 | 118.99 | 0.3516 | 722.0 | 506.3 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -1.25 | 152.50 | -17.92 | 113.29 | 0.3365 | 967.0 | 821.0 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -3.16 | 152.45 | -17.98 | 118.22 | 0.3514 | 437.0 | 305.9 | |
| 0.44 | 5.90 | 0.23 | 3.09 | 0.32 | 152.39 | -18.04 | 108.76 | 0.3286 | 1104.4 | 751.7 | |
| 22.81 | 98.72 | 12.02 | 52.11 | -1.53 | 152.19 | -18.24 | 113.67 | 0.3432 | 1009.3 | 255.6 | |
| 0.53 | 2.29 | 0.28 | 1.20 | -0.11 | 152.13 | -18.30 | 109.72 | 0.3350 | 1036.7 | 879.7 | |
| 3.61 | -17.00 | 1.90 | -17.00 | -0.63 | 152.00 | -18.43 | 111.02 | 0.3401 | 1140.6 | 999999 | |
| 0.44 | -17.00 | 0.23 | -17.00 | -1.08 | 151.43 | -19.00 | 111.58 | 0.3516 | 772.6 | 999999 | |
| 1.32 | 3.96 | 0.70 | 2.10 | -0.39 | 151.18 | -19.25 | 109.49 | 0.3513 | 810.1 | 607.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -0.71 | 150.76 | -19.67 | 109.92 | 0.3595 | 106.0 | 61.9 | |
| 0.00 | 19.29 | 0.00 | 10.23 | -0.14 | 150.61 | -19.82 | 108.27 | 0.3587 | -52.0 | -333.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -2.39 | 150.49 | -19.94 | 113.86 | 0.3742 | -993.0 | -810.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -0.63 | 150.48 | -19.95 | 109.43 | 0.3634 | -626.0 | -477.0 | |
| 0.00 | 2.38 | 0.00 | 1.27 | -1.15 | 150.38 | -20.05 | 110.66 | 0.3679 | -787.0 | -628.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 0.48 | 150.19 | -20.24 | 106.27 | 0.3619 | -355.0 | -623.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 0.35 | 150.10 | -20.33 | 106.52 | 0.3640 | -872.0 | -757.5 | |
| 2.20 | 53.55 | 1.18 | 28.59 | -0.99 | 149.84 | -20.59 | 109.73 | 0.3752 | -1088.8 | -656.7 | |
| 23.34 | -29.00 | 12.45 | -29.00 | -0.62 | 149.81 | -20.62 | 108.79 | 0.3736 | -1104.0 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -1.03 | 149.45 | -20.98 | 109.48 | 0.3814 | -259.0 | -235.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -1.28 | 149.22 | -21.21 | 109.89 | 0.3862 | -671.0 | -635.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -1.50 | 149.22 | -21.21 | 110.40 | 0.3875 | -775.0 | -572.8 | |
| 2.29 | 23.07 | 1.23 | 12.45 | -2.06 | 148.82 | -21.61 | 111.36 | 0.3968 | -1157.6 | -801.3 | |
| 1.06 | -34.00 | 0.57 | -34.00 | -2.43 | 148.72 | -21.71 | 112.12 | 0.4006 | -895.9 | 999999 | |
| 2.73 | -34.00 | 1.47 | -34.00 | -2.25 | 148.69 | -21.74 | 111.67 | 0.3999 | -1021.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -6.26 | 147.19 | -23.24 | 118.69 | 0.4489 | 614.0 | 502.4 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -5.91 | 146.75 | -23.68 | 117.54 | 0.4524 | 645.0 | 545.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
