SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.22 | 0.00 | 9.04 | -5.23 | 139.23 | -31.20 | 110.17 | 0.5518 | -757.9 | -666.2 | |
|
previous
or next observation for the same group /

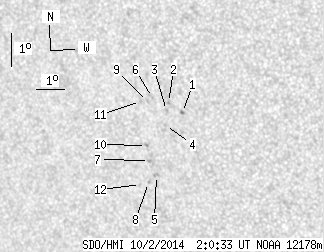

back to the solar disc SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.98 | -4.39 | 140.18 | -30.25 | 109.34 | 0.5344 | -882.0 | -787.1 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -4.11 | 139.70 | -30.72 | 108.55 | 0.5396 | -941.0 | -832.2 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -4.36 | 139.62 | -30.81 | 108.94 | 0.5420 | -839.0 | -649.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -4.82 | 139.57 | -30.86 | 109.70 | 0.5451 | -716.0 | -620.8 | |
| 0.00 | 2.47 | 0.00 | 1.47 | -6.38 | 139.15 | -31.28 | 112.08 | 0.5589 | -748.0 | -701.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -3.99 | 139.15 | -31.28 | 108.01 | 0.5468 | -782.0 | -597.6 | |
| 0.00 | 1.76 | 0.00 | 1.05 | -5.93 | 138.93 | -31.49 | 111.19 | 0.5594 | -810.0 | -679.8 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -6.61 | 138.85 | -31.58 | 112.26 | 0.5642 | -660.0 | -607.6 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -4.12 | 138.97 | -31.46 | 108.13 | 0.5500 | -774.0 | -640.0 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -5.48 | 138.86 | -31.57 | 110.37 | 0.5581 | -786.0 | -652.9 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -4.14 | 138.72 | -31.71 | 108.01 | 0.5535 | -608.0 | -559.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -6.69 | 138.56 | -31.87 | 112.20 | 0.5685 | -549.0 | -452.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
