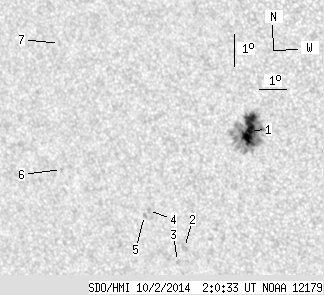

SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.12 | 101.55 | 17.97 | 61.14 | -9.92 | 140.09 | -30.34 | 118.51 | 0.5682 | 646.9 | 164.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.12 | 89.21 | 17.97 | 53.29 | -9.60 | 140.64 | -29.79 | 118.45 | 0.5593 | 1067.7 | 317.5 | |
| 0.00 | 3.79 | 0.00 | 2.39 | -13.47 | 137.82 | -32.61 | 121.94 | 0.6198 | -612.0 | -575.4 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -13.94 | 137.49 | -32.94 | 122.33 | 0.6269 | -510.0 | -461.4 | |
| 0.00 | 1.94 | 0.00 | 1.23 | -12.37 | 136.66 | -33.77 | 119.51 | 0.6261 | -702.0 | -634.7 | |
| 0.00 | 2.03 | 0.00 | 1.29 | -12.54 | 136.49 | -33.94 | 119.62 | 0.6293 | -743.0 | -507.5 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -11.29 | 133.55 | -36.88 | 115.90 | 0.6566 | -599.0 | -479.9 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -7.34 | 133.96 | -36.47 | 110.44 | 0.6314 | -513.0 | -412.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
