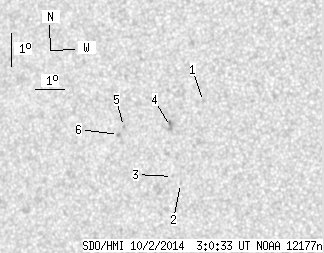

SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.48 | 0.00 | 6.03 | 4.63 | 139.39 | -30.49 | 92.23 | 0.5082 | -208.7 | -346.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.75 | 5.74 | 140.69 | -29.19 | 90.21 | 0.4872 | -667.0 | -532.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 3.23 | 140.00 | -29.88 | 95.14 | 0.5014 | -608.0 | -436.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 3.43 | 139.72 | -30.16 | 94.68 | 0.5053 | -667.0 | -483.5 | |
| 0.00 | 4.67 | 0.00 | 2.68 | 4.93 | 139.59 | -30.29 | 91.69 | 0.5048 | -894.0 | -745.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 4.83 | 137.93 | -31.95 | 91.61 | 0.5295 | 765.0 | 628.8 | |
| 0.00 | 1.59 | 0.00 | 0.93 | 4.58 | 137.77 | -32.11 | 92.05 | 0.5323 | 819.0 | 676.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
