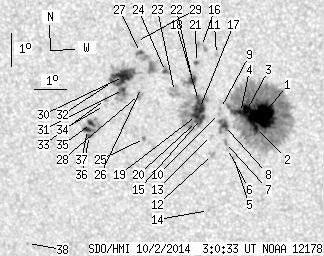

SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.31 | 544.64 | 64.72 | 285.30 | -1.44 | 152.79 | -17.09 | 115.07 | 0.3256 | 583.5 | 282.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.92 | 313.11 | 23.36 | 162.86 | -1.63 | 154.21 | -15.67 | 117.45 | 0.3056 | 1551.4 | 491.2 | |
| 4.40 | -1.00 | 2.29 | -1.00 | -2.00 | 153.99 | -15.89 | 118.17 | 0.3118 | 1118.2 | 999999 | |
| 7.13 | -1.00 | 3.72 | -1.00 | -1.50 | 153.71 | -16.17 | 116.31 | 0.3119 | 1184.4 | 999999 | |
| 3.79 | -1.00 | 1.98 | -1.00 | -1.56 | 153.52 | -16.36 | 116.23 | 0.3152 | 969.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -2.94 | 153.29 | -16.59 | 119.64 | 0.3296 | 723.0 | 537.3 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -2.67 | 153.10 | -16.78 | 118.65 | 0.3300 | 347.0 | 381.2 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -2.49 | 153.04 | -16.84 | 118.08 | 0.3295 | 726.0 | 577.6 | |
| 3.79 | 11.71 | 1.98 | 6.14 | -1.97 | 153.02 | -16.86 | 116.65 | 0.3258 | 1004.6 | 755.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -1.46 | 152.90 | -16.98 | 115.07 | 0.3238 | 694.0 | 603.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -1.61 | 152.86 | -17.02 | 115.45 | 0.3254 | 652.0 | 555.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 0.17 | 152.78 | -17.10 | 110.22 | 0.3148 | 1064.0 | 783.4 | |
| 0.00 | 2.99 | 0.00 | 1.58 | -2.87 | 152.63 | -17.25 | 118.48 | 0.3385 | 773.0 | 464.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -2.29 | 152.60 | -17.28 | 116.93 | 0.3343 | 524.0 | 300.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -4.58 | 152.46 | -17.42 | 122.49 | 0.3553 | 637.0 | 426.6 | |
| 3.35 | 67.11 | 1.76 | 35.30 | -1.78 | 152.30 | -17.58 | 115.16 | 0.3351 | 990.0 | 273.2 | |
| 0.00 | 5.99 | 0.00 | 3.13 | 0.39 | 152.31 | -17.57 | 109.03 | 0.3208 | 562.0 | 787.7 | |
| 8.28 | -15.00 | 4.35 | -15.00 | -1.48 | 152.24 | -17.64 | 114.26 | 0.3338 | 1120.2 | 999999 | |
| 4.14 | -15.00 | 2.17 | -15.00 | -1.24 | 152.21 | -17.67 | 113.57 | 0.3326 | 914.7 | 999999 | |
| 4.58 | -15.00 | 2.41 | -15.00 | -1.70 | 152.14 | -17.74 | 114.72 | 0.3368 | 991.9 | 999999 | |
| 1.85 | -15.00 | 0.97 | -15.00 | -1.88 | 152.14 | -17.74 | 115.21 | 0.3381 | 843.2 | 999999 | |
| 0.62 | 1.41 | 0.32 | 0.74 | -0.09 | 152.15 | -17.73 | 110.27 | 0.3261 | 975.7 | 822.2 | |
| 4.05 | 11.71 | 2.13 | 6.15 | -0.64 | 152.02 | -17.86 | 111.68 | 0.3314 | 1135.0 | 648.1 | |
| 0.00 | 9.60 | 0.00 | 5.06 | -1.00 | 151.45 | -18.43 | 111.99 | 0.3424 | 269.0 | 303.4 | |
| 0.97 | 4.58 | 0.51 | 2.41 | -0.40 | 151.17 | -18.71 | 110.07 | 0.3430 | 829.4 | 648.3 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -2.46 | 150.48 | -19.40 | 114.65 | 0.3667 | -1016.0 | -836.1 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -0.91 | 150.40 | -19.48 | 110.64 | 0.3578 | 250.0 | 179.2 | |
| 1.06 | 19.82 | 0.56 | 10.47 | 0.14 | 150.38 | -19.50 | 107.80 | 0.3522 | -1087.8 | -279.3 | |
| 0.00 | 4.58 | 0.00 | 2.43 | -1.13 | 150.34 | -19.54 | 111.13 | 0.3601 | -480.0 | -513.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 0.47 | 150.25 | -19.63 | 106.80 | 0.3525 | -999.0 | -744.2 | |
| 19.99 | 53.81 | 10.63 | 28.63 | -0.60 | 149.83 | -20.05 | 109.26 | 0.3647 | -1130.6 | -711.5 | |
| 1.23 | -30.00 | 0.66 | -30.00 | -1.00 | 149.83 | -20.05 | 110.27 | 0.3670 | -1158.7 | 999999 | |
| 2.11 | -30.00 | 1.13 | -30.00 | -0.77 | 149.48 | -20.40 | 109.35 | 0.3710 | -829.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -1.32 | 149.25 | -20.63 | 110.52 | 0.3777 | -839.0 | -779.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -1.51 | 149.22 | -20.67 | 110.93 | 0.3793 | -710.0 | -632.8 | |
| 2.73 | 22.11 | 1.47 | 11.88 | -2.07 | 148.79 | -21.09 | 111.88 | 0.3892 | -1075.1 | -798.5 | |
| 0.97 | -35.00 | 0.52 | -35.00 | -2.44 | 148.72 | -21.16 | 112.67 | 0.3926 | -882.8 | 999999 | |
| 3.35 | -35.00 | 1.80 | -35.00 | -2.26 | 148.66 | -21.22 | 112.19 | 0.3923 | -963.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -5.83 | 146.60 | -23.28 | 117.79 | 0.4464 | 720.0 | 611.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
