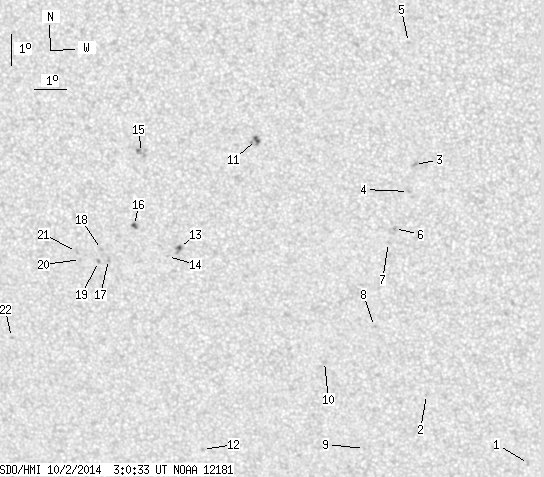

SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 41.73 | 2.33 | 22.40 | -13.90 | 161.94 | -7.94 | 159.06 | 0.3830 | 178.4 | 224.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.08 | -20.72 | 170.96 | 1.08 | 182.20 | 0.4625 | 804.0 | 547.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -18.41 | 167.72 | -2.16 | 175.18 | 0.4273 | 645.0 | 427.9 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -10.99 | 167.44 | -2.44 | 172.14 | 0.3077 | 920.0 | 728.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.84 | 167.24 | -2.64 | 171.93 | 0.3222 | 858.0 | 731.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -7.18 | 167.28 | -2.60 | 169.38 | 0.2448 | 790.0 | 520.5 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -13.02 | 166.80 | -3.08 | 171.16 | 0.3425 | 1048.0 | 762.0 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -13.47 | 166.61 | -3.27 | 170.84 | 0.3503 | 715.0 | 485.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.18 | 166.12 | -3.76 | 170.79 | 0.3951 | 749.0 | 555.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -20.22 | 165.71 | -4.17 | 171.42 | 0.4593 | 643.0 | 473.8 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -17.34 | 164.52 | -5.36 | 167.63 | 0.4180 | 667.0 | 507.1 | |
| 1.76 | 3.08 | 0.92 | 1.61 | -10.24 | 162.61 | -7.27 | 156.77 | 0.3173 | -1055.6 | -886.1 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -20.33 | 160.48 | -9.40 | 161.31 | 0.4799 | 763.0 | 569.3 | |
| 1.14 | 3.70 | 0.61 | 1.99 | -13.71 | 160.10 | -9.78 | 154.55 | 0.3857 | 835.1 | 644.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.00 | 159.71 | -10.17 | 154.02 | 0.3927 | 545.0 | 437.3 | |
| 0.00 | 6.17 | 0.00 | 3.26 | -10.72 | 159.04 | -10.84 | 148.10 | 0.3513 | 824.0 | 804.0 | |
| 1.50 | 2.73 | 0.80 | 1.47 | -13.03 | 158.72 | -11.16 | 150.64 | 0.3863 | -996.1 | -869.6 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -14.14 | 157.84 | -12.04 | 150.20 | 0.4086 | -830.0 | -712.6 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -13.83 | 157.64 | -12.24 | 149.38 | 0.4059 | -885.0 | -681.3 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -14.21 | 157.52 | -12.36 | 149.63 | 0.4121 | -877.0 | -702.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.17 | 156.95 | -12.93 | 148.44 | 0.4161 | -769.0 | -634.3 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -13.91 | 156.84 | -13.04 | 147.88 | 0.4136 | -817.0 | -661.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -16.76 | 154.55 | -15.33 | 147.28 | 0.4701 | -729.0 | -641.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
