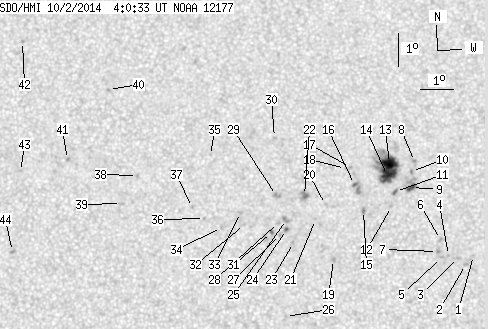

SDO HMI 2014-10-02 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.57 | 138.14 | 17.73 | 68.86 | 12.25 | 169.12 | -0.21 | 321.88 | 0.1082 | -311.4 | -196.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.27 | 173.11 | 3.78 | 314.14 | 0.0908 | -948.0 | -723.2 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 10.01 | 172.86 | 3.53 | 313.83 | 0.0845 | -838.0 | -673.0 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 10.22 | 172.65 | 3.32 | 317.36 | 0.0846 | -937.0 | -769.3 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 10.28 | 172.35 | 3.02 | 320.57 | 0.0819 | -887.0 | -719.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 10.22 | 172.13 | 2.80 | 322.15 | 0.0788 | -924.0 | -605.2 | |
| 0.00 | 1.94 | 0.00 | 0.96 | 10.76 | 172.11 | 2.78 | 326.29 | 0.0862 | -1037.0 | -782.9 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 10.40 | 172.01 | 2.68 | 324.73 | 0.0801 | -954.0 | -761.3 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 13.12 | 171.33 | 2.00 | 343.12 | 0.1178 | -1040.0 | -875.0 | |
| 2.99 | 9.25 | 1.49 | 4.61 | 12.33 | 171.24 | 1.90 | 341.78 | 0.1043 | -1067.3 | -779.4 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 12.82 | 171.24 | 1.91 | 343.12 | 0.1123 | -1021.0 | -826.9 | |
| 0.79 | 2.47 | 0.39 | 1.23 | 12.22 | 170.74 | 1.41 | 345.99 | 0.0999 | -963.2 | -729.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.76 | 170.62 | 1.29 | 346.08 | 0.0918 | -733.0 | -605.2 | |
| 16.82 | 55.58 | 8.39 | 27.71 | 13.06 | 170.56 | 1.23 | 349.33 | 0.1137 | -1234.9 | -535.4 | |
| 13.74 | -13.00 | 6.85 | -13.00 | 12.70 | 170.50 | 1.17 | 349.26 | 0.1073 | -1241.8 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.09 | 11.65 | 169.76 | 0.43 | 355.18 | 0.0873 | -1203.0 | -971.6 | |
| 0.53 | 7.22 | 0.26 | 3.60 | 12.43 | 169.48 | 0.15 | 358.51 | 0.1007 | -1060.7 | -958.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 12.94 | 169.36 | 0.03 | 359.72 | 0.1096 | -794.0 | -567.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 12.91 | 169.21 | -0.12 | 1.10 | 0.1091 | -785.0 | -590.2 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 10.17 | 168.84 | -0.49 | 7.88 | 0.0618 | 999.0 | 796.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 11.83 | 168.59 | -0.74 | 7.98 | 0.0911 | -740.0 | -487.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.38 | 168.29 | -1.04 | 12.28 | 0.0842 | 660.0 | 567.5 | |
| 0.00 | 6.78 | 0.00 | 3.38 | 12.10 | 167.95 | -1.38 | 14.01 | 0.0978 | -265.0 | -321.4 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 10.68 | 167.62 | -1.71 | 22.80 | 0.0762 | 834.0 | 621.2 | |
| 0.70 | 1.85 | 0.35 | 0.92 | 11.07 | 167.40 | -1.93 | 23.30 | 0.0839 | 1160.8 | 952.2 | |
| 0.00 | 3.79 | 0.00 | 1.88 | 11.37 | 167.40 | -1.93 | 21.95 | 0.0887 | 839.0 | 876.7 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 8.46 | 167.38 | -1.95 | 47.18 | 0.0460 | 795.0 | 541.8 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.92 | 167.22 | -2.11 | 26.03 | 0.0828 | 730.0 | 584.8 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 11.28 | 167.16 | -2.17 | 24.85 | 0.0890 | 903.0 | 784.0 | |
| 0.00 | 3.44 | 0.00 | 1.71 | 12.10 | 167.09 | -2.24 | 22.03 | 0.1024 | 1093.0 | 897.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.85 | 167.01 | -2.32 | 17.45 | 0.1315 | 790.0 | 576.1 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.98 | 166.95 | -2.39 | 28.55 | 0.0859 | 1158.0 | 988.6 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 11.22 | 166.12 | -3.22 | 34.74 | 0.0970 | 860.0 | 653.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 11.58 | 165.99 | -3.34 | 33.70 | 0.1034 | 862.0 | 666.6 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 11.12 | 165.41 | -3.92 | 40.77 | 0.1032 | 868.0 | 631.0 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 13.29 | 165.04 | -4.29 | 32.22 | 0.1371 | 634.0 | 366.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 11.39 | 164.89 | -4.44 | 42.63 | 0.1127 | -856.0 | -662.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.72 | 164.51 | -4.82 | 42.97 | 0.1212 | -839.0 | -617.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 12.67 | 162.80 | -6.53 | 46.58 | 0.1536 | 943.0 | 573.8 | |
| 0.00 | 2.38 | 0.00 | 1.19 | 11.82 | 162.32 | -7.01 | 52.87 | 0.1505 | 844.0 | 633.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 15.26 | 161.82 | -7.51 | 40.04 | 0.1970 | 864.0 | 689.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 13.12 | 160.61 | -8.72 | 52.45 | 0.1871 | 859.0 | 722.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 16.67 | 159.04 | -10.29 | 44.31 | 0.2461 | 817.0 | 670.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 12.73 | 159.16 | -10.17 | 58.10 | 0.2039 | 766.0 | 616.2 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 10.32 | 159.00 | -10.34 | 69.68 | 0.1891 | 959.0 | 721.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
