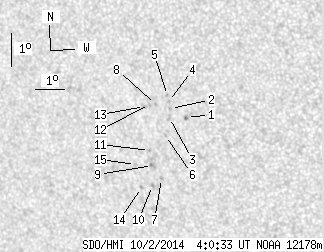

SDO HMI 2014-10-02 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.47 | 0.00 | 13.17 | -5.00 | 139.26 | -30.07 | 110.49 | 0.5352 | -748.9 | -623.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.02 | -4.39 | 140.26 | -29.07 | 110.11 | 0.5180 | -810.0 | -763.8 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -4.14 | 139.72 | -29.61 | 109.30 | 0.5243 | -729.0 | -682.5 | |
| 0.00 | 2.55 | 0.00 | 1.49 | -4.42 | 139.67 | -29.66 | 109.77 | 0.5264 | -826.0 | -628.0 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -3.93 | 139.66 | -29.67 | 108.88 | 0.5241 | -800.0 | -679.1 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -3.75 | 139.63 | -29.70 | 108.54 | 0.5236 | -821.0 | -632.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -4.98 | 139.50 | -29.83 | 110.65 | 0.5316 | -650.0 | -516.4 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -6.32 | 139.29 | -30.05 | 112.81 | 0.5420 | -844.0 | -655.3 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -4.05 | 139.20 | -30.13 | 108.81 | 0.5311 | -695.0 | -537.7 | |
| 0.00 | 2.55 | 0.00 | 1.51 | -5.93 | 139.00 | -30.34 | 111.95 | 0.5438 | -890.0 | -717.8 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -6.55 | 138.95 | -30.38 | 112.97 | 0.5478 | -668.0 | -526.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -5.48 | 138.92 | -30.41 | 111.12 | 0.5423 | -792.0 | -686.1 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -4.06 | 138.99 | -30.34 | 108.70 | 0.5341 | -727.0 | -596.2 | |
| 0.00 | 1.94 | 0.00 | 1.14 | -4.14 | 138.81 | -30.52 | 108.71 | 0.5369 | -688.0 | -571.3 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -6.64 | 138.56 | -30.77 | 112.84 | 0.5535 | -752.0 | -608.8 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -5.94 | 138.40 | -30.93 | 111.55 | 0.5519 | -541.0 | -444.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
