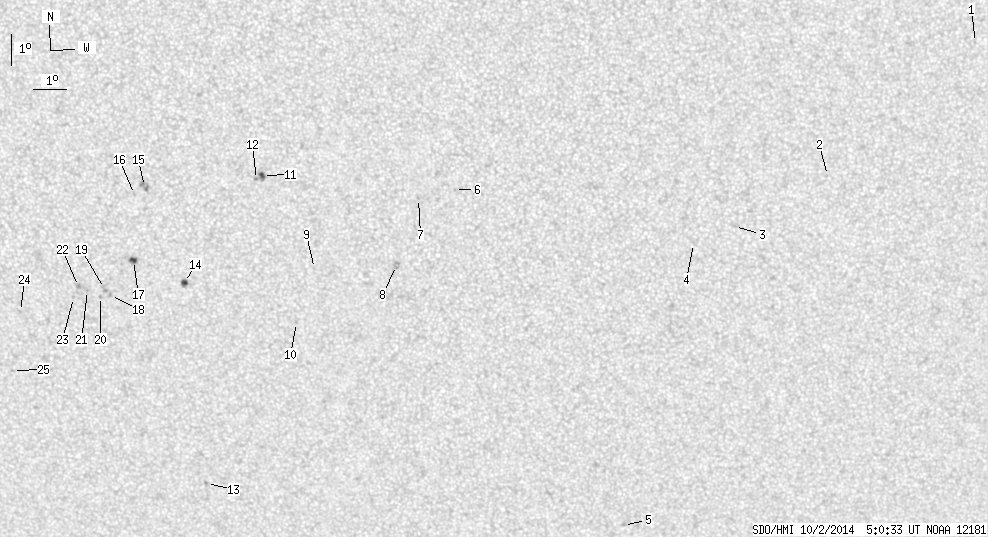

SDO HMI 2014-10-02 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.61 | 45.79 | 3.50 | 24.47 | -12.97 | 162.17 | -6.62 | 162.54 | 0.3719 | -102.5 | 9.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.70 | -6.39 | 184.51 | 15.73 | 230.56 | 0.3504 | 4.0 | 0.3 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -10.39 | 180.03 | 11.25 | 213.37 | 0.3502 | -26.0 | -14.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.94 | 177.19 | 8.41 | 204.23 | 0.3501 | 12.0 | -0.9 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -12.45 | 175.94 | 7.15 | 200.41 | 0.3502 | -8.0 | -7.7 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -21.69 | 174.02 | 5.23 | 190.13 | 0.4840 | 762.0 | 567.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -10.68 | 168.58 | -0.21 | 179.32 | 0.2996 | 656.0 | 532.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.97 | 167.48 | -1.31 | 175.77 | 0.3052 | 963.0 | 814.9 | |
| 0.00 | 3.96 | 0.00 | 2.09 | -13.09 | 166.78 | -2.00 | 174.26 | 0.3413 | 511.0 | 740.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.20 | 164.25 | -4.53 | 167.23 | 0.3497 | 66.0 | 43.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.94 | 163.65 | -5.13 | 166.78 | 0.3795 | 768.0 | 608.1 | |
| 1.85 | 3.79 | 0.96 | 1.97 | -10.27 | 162.71 | -6.07 | 160.30 | 0.3103 | -1095.8 | -842.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.40 | 162.52 | -6.26 | 159.89 | 0.3133 | -845.0 | -701.7 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -20.29 | 160.59 | -8.19 | 163.53 | 0.4735 | 736.0 | 603.3 | |
| 2.29 | 4.32 | 1.22 | 2.31 | -13.70 | 160.20 | -8.59 | 157.31 | 0.3776 | 794.8 | 496.5 | |
| 0.00 | 5.73 | 0.00 | 3.02 | -10.68 | 159.06 | -9.72 | 150.77 | 0.3413 | 837.0 | 879.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -10.93 | 158.74 | -10.04 | 150.35 | 0.3475 | 664.0 | 592.1 | |
| 2.47 | 4.05 | 1.32 | 2.17 | -13.03 | 158.63 | -10.15 | 152.88 | 0.3784 | -1091.1 | -901.0 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -14.16 | 157.86 | -10.93 | 152.54 | 0.4003 | -839.0 | -767.6 | |
| 0.00 | 2.82 | 0.00 | 1.52 | -13.94 | 157.68 | -11.11 | 151.89 | 0.3985 | -726.0 | -751.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -14.20 | 157.54 | -11.25 | 151.91 | 0.4032 | -807.0 | -659.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.02 | 157.14 | -11.65 | 150.84 | 0.4037 | -899.0 | -755.6 | |
| 0.00 | 2.47 | 0.00 | 1.33 | -13.90 | 156.86 | -11.92 | 150.11 | 0.4042 | -863.0 | -744.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.25 | 156.68 | -12.10 | 150.19 | 0.4105 | -681.0 | -516.6 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -14.75 | 154.96 | -13.82 | 147.46 | 0.4312 | -773.0 | -506.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -16.68 | 154.57 | -14.22 | 149.09 | 0.4599 | -602.0 | -510.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
