SDO HMI 2014-10-02 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.68 | 86.67 | 42.33 | 262.53 | -15.20 | 245.31 | 77.62 | 253.20 | 0.9851 | -316.7 | 134.3 | |
|
previous
or next observation for the same group /

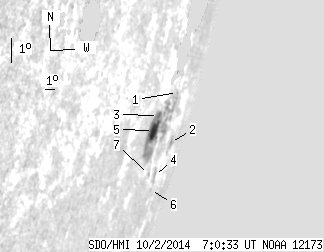

back to the solar disc SDO HMI 2014-10-02 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 3.34 | -14.16 | 247.31 | 79.62 | 254.57 | 0.9901 | 529.0 | 509.3 | |
| 0.00 | 4.49 | 0.00 | 19.62 | -15.92 | 248.82 | 81.13 | 253.05 | 0.9938 | 371.0 | 409.6 | |
| 3.52 | 73.46 | 9.56 | 212.48 | -14.60 | 244.87 | 77.18 | 253.73 | 0.9837 | -312.6 | 89.2 | |
| 0.00 | 5.73 | 0.00 | 20.39 | -16.79 | 247.28 | 79.59 | 251.95 | 0.9910 | 218.0 | 202.0 | |
| 12.16 | -3.00 | 32.77 | -3.00 | -15.05 | 244.69 | 77.00 | 253.25 | 0.9835 | -405.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 2.88 | -17.24 | 247.34 | 79.65 | 251.50 | 0.9913 | 106.0 | 71.6 | |
| 0.00 | 1.23 | 0.00 | 3.82 | -16.60 | 245.98 | 78.29 | 251.92 | 0.9878 | 49.0 | 84.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
