SDO HMI 2014-10-02 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.52 | 47.20 | 3.45 | 25.17 | -13.49 | 161.53 | -5.61 | 164.90 | 0.3649 | 305.8 | 79.5 | |
|
previous
or next observation for the same group /

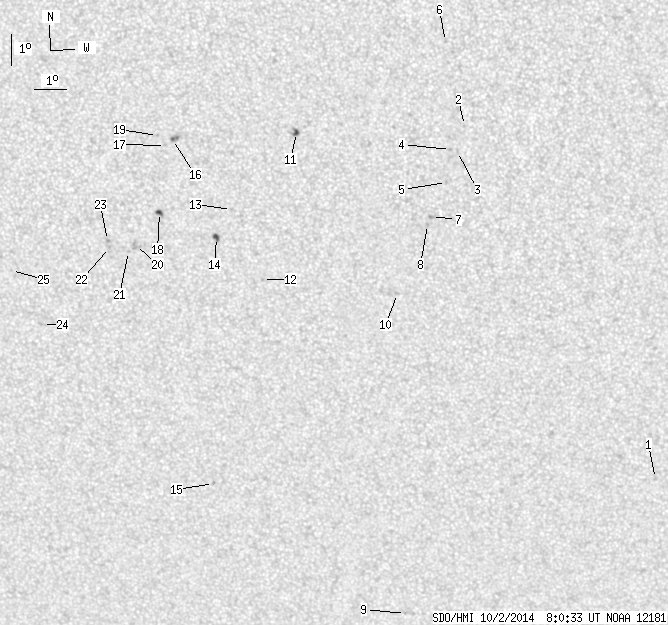

back to the solar disc SDO HMI 2014-10-02 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.75 | -21.70 | 174.19 | 7.05 | 193.53 | 0.4896 | 494.0 | 491.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.14 | 167.97 | 0.83 | 182.82 | 0.2906 | 783.0 | 574.0 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -10.95 | 167.76 | 0.61 | 181.99 | 0.3041 | 861.0 | 669.8 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.89 | 167.54 | 0.40 | 181.30 | 0.3029 | 954.0 | 694.6 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -11.93 | 167.42 | 0.28 | 180.85 | 0.3202 | 856.0 | 667.7 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -7.52 | 167.39 | 0.25 | 181.01 | 0.2460 | 866.0 | 698.9 | |
| 0.00 | 2.20 | 0.00 | 1.16 | -13.01 | 166.96 | -0.18 | 179.47 | 0.3381 | 918.0 | 773.4 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -13.27 | 166.83 | -0.31 | 179.12 | 0.3423 | 879.0 | 655.3 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -26.35 | 166.05 | -1.09 | 178.21 | 0.5471 | 738.0 | 651.3 | |
| 0.00 | 2.11 | 0.00 | 1.13 | -15.49 | 165.89 | -1.25 | 176.81 | 0.3791 | 721.0 | 593.9 | |
| 1.76 | 5.28 | 0.92 | 2.75 | -10.37 | 162.84 | -4.30 | 165.84 | 0.3030 | -1027.4 | -832.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.06 | 161.69 | -5.45 | 166.06 | 0.3823 | 831.0 | 672.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -12.82 | 160.79 | -6.35 | 162.04 | 0.3514 | 926.0 | 593.7 | |
| 2.38 | 3.88 | 1.27 | 2.06 | -13.72 | 160.30 | -6.84 | 161.58 | 0.3678 | 747.1 | 519.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -21.85 | 159.87 | -7.27 | 166.14 | 0.4927 | 747.0 | 648.1 | |
| 0.62 | 3.61 | 0.32 | 1.89 | -10.63 | 159.03 | -8.11 | 154.90 | 0.3284 | 1069.4 | 902.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.83 | 158.81 | -8.34 | 154.55 | 0.3328 | 686.0 | 524.2 | |
| 1.76 | 2.99 | 0.94 | 1.59 | -12.95 | 158.55 | -8.59 | 156.47 | 0.3662 | -1011.2 | -889.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.51 | 158.57 | -8.57 | 153.50 | 0.3299 | 812.0 | 578.2 | |
| 0.00 | 5.55 | 0.00 | 2.98 | -14.02 | 157.76 | -9.38 | 155.78 | 0.3872 | -808.0 | -768.9 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.22 | 157.53 | -9.61 | 155.47 | 0.3916 | -776.0 | -670.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.10 | 156.94 | -10.20 | 154.02 | 0.3939 | -898.0 | -764.8 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -13.88 | 156.89 | -10.26 | 153.65 | 0.3911 | -936.0 | -792.0 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -16.65 | 154.67 | -12.48 | 152.22 | 0.4460 | -667.0 | -390.2 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -14.91 | 153.79 | -13.35 | 148.53 | 0.4293 | -668.0 | -522.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
