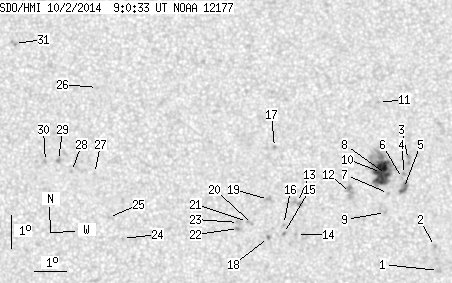

SDO HMI 2014-10-02 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.89 | 122.51 | 12.94 | 61.14 | 12.64 | 169.00 | 2.40 | 317.40 | 0.1237 | -204.3 | -210.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.91 | 0.00 | 1.45 | 9.96 | 172.27 | 5.67 | 300.87 | 0.1140 | -972.0 | -680.0 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 10.68 | 172.16 | 5.56 | 306.61 | 0.1192 | -970.0 | -876.3 | |
| 0.00 | 3.88 | 0.00 | 1.94 | 13.31 | 171.41 | 4.82 | 324.91 | 0.1428 | -865.0 | -730.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 12.86 | 171.28 | 4.68 | 323.73 | 0.1352 | -948.0 | -781.6 | |
| 0.00 | 6.17 | 0.00 | 3.08 | 12.44 | 171.24 | 4.65 | 321.98 | 0.1290 | -980.0 | -894.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 12.74 | 171.22 | 4.62 | 323.56 | 0.1329 | -918.0 | -645.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 12.29 | 170.78 | 4.18 | 324.14 | 0.1222 | -975.0 | -809.7 | |
| 2.82 | 57.51 | 1.41 | 28.74 | 12.87 | 170.72 | 4.13 | 327.10 | 0.1298 | -1166.2 | -567.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 11.72 | 170.67 | 4.08 | 321.83 | 0.1132 | -941.0 | -767.9 | |
| 23.07 | -8.00 | 11.53 | -8.00 | 12.93 | 170.57 | 3.98 | 328.33 | 0.1293 | -1228.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.05 | 170.52 | 3.92 | 335.69 | 0.1612 | -781.0 | -569.8 | |
| 0.00 | 8.90 | 0.00 | 4.43 | 12.33 | 169.61 | 3.01 | 332.62 | 0.1121 | -1021.0 | -842.1 | |
| 0.00 | 5.72 | 0.00 | 2.85 | 12.04 | 167.98 | 1.38 | 345.90 | 0.0973 | -548.0 | -506.7 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 11.08 | 167.94 | 1.35 | 343.37 | 0.0809 | 847.0 | 664.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 11.11 | 167.54 | 0.95 | 348.20 | 0.0797 | 961.0 | 879.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.38 | 167.54 | 0.95 | 348.85 | 0.0844 | 894.0 | 729.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 13.70 | 167.28 | 0.68 | 354.61 | 0.1238 | 885.0 | 735.1 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 10.99 | 167.08 | 0.49 | 353.68 | 0.0764 | 1148.0 | 929.0 | |
| 0.00 | 3.43 | 0.00 | 1.71 | 12.13 | 167.09 | 0.49 | 354.97 | 0.0963 | 1151.0 | 825.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.38 | 166.60 | 0.00 | 360.00 | 0.0828 | 959.0 | 731.4 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 11.47 | 166.44 | -0.15 | 1.78 | 0.0844 | 952.0 | 655.4 | |
| 0.00 | 2.20 | 0.00 | 1.09 | 11.26 | 166.17 | -0.43 | 5.21 | 0.0810 | 1162.0 | 924.4 | |
| 0.00 | 3.08 | 0.00 | 1.53 | 11.44 | 166.17 | -0.43 | 5.01 | 0.0842 | 915.0 | 771.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 10.95 | 162.62 | -3.98 | 42.16 | 0.1019 | 863.0 | 786.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.58 | 162.18 | -4.41 | 41.18 | 0.1150 | 819.0 | 694.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.50 | 161.77 | -4.83 | 27.72 | 0.1751 | 872.0 | 685.1 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 12.90 | 161.73 | -4.87 | 37.13 | 0.1376 | 850.0 | 688.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 12.95 | 161.02 | -5.58 | 40.66 | 0.1461 | 886.0 | 616.5 | |
| 0.00 | 2.64 | 0.00 | 1.32 | 13.28 | 160.61 | -5.99 | 41.18 | 0.1549 | 1084.0 | 807.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 13.25 | 160.20 | -6.39 | 43.16 | 0.1591 | 1001.0 | 810.8 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 16.81 | 159.12 | -7.47 | 35.07 | 0.2177 | 908.0 | 667.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
