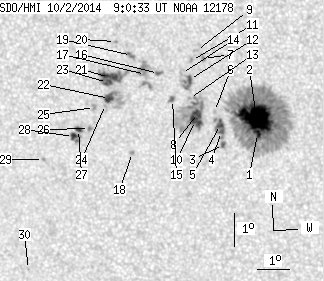

SDO HMI 2014-10-02 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.07 | 538.47 | 57.29 | 277.37 | -1.49 | 153.01 | -13.59 | 120.83 | 0.2745 | 594.8 | 294.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 325.60 | 2.40 | 166.85 | -2.12 | 154.26 | -12.33 | 125.07 | 0.2619 | 1073.7 | 449.4 | |
| 56.10 | -1.00 | 28.75 | -1.00 | -1.63 | 154.24 | -12.36 | 123.47 | 0.2576 | 1409.3 | 999999 | |
| 0.97 | 3.52 | 0.50 | 1.82 | -2.48 | 153.21 | -13.38 | 123.93 | 0.2799 | 834.5 | 661.6 | |
| 1.67 | 14.62 | 0.86 | 7.53 | -2.08 | 153.16 | -13.44 | 122.64 | 0.2770 | 938.4 | 780.7 | |
| 4.14 | -4.00 | 2.13 | -4.00 | -1.87 | 153.13 | -13.47 | 121.93 | 0.2755 | 1084.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -1.48 | 152.95 | -13.65 | 120.37 | 0.2747 | 922.0 | 683.2 | |
| 0.00 | 2.29 | 0.00 | 1.18 | 0.11 | 152.61 | -13.98 | 114.58 | 0.2669 | 1076.0 | 899.3 | |
| 4.76 | 62.44 | 2.46 | 32.28 | -1.56 | 152.42 | -14.18 | 119.64 | 0.2829 | 1141.0 | 398.3 | |
| 0.00 | 2.03 | 0.00 | 1.04 | 0.35 | 152.40 | -14.20 | 113.43 | 0.2685 | 831.0 | 683.9 | |
| 8.90 | -8.00 | 4.60 | -8.00 | -1.77 | 152.35 | -14.24 | 120.18 | 0.2857 | 970.3 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.95 | 0.04 | 152.24 | -14.35 | 114.22 | 0.2731 | 1021.0 | 834.0 | |
| 2.11 | 12.07 | 1.09 | 6.22 | -0.54 | 152.18 | -14.42 | 116.01 | 0.2783 | 1120.7 | 719.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -1.11 | 152.17 | -14.42 | 117.83 | 0.2828 | 572.0 | 417.0 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -0.36 | 151.93 | -14.67 | 115.05 | 0.2807 | 548.0 | 529.6 | |
| 0.97 | 3.61 | 0.50 | 1.87 | -1.16 | 151.65 | -14.95 | 117.10 | 0.2910 | 838.9 | 612.4 | |
| 1.06 | 3.17 | 0.55 | 1.64 | -0.38 | 151.21 | -15.38 | 114.05 | 0.2917 | 913.7 | 733.3 | |
| 0.00 | 22.99 | 0.00 | 11.92 | -0.42 | 150.81 | -15.79 | 113.60 | 0.2982 | -426.0 | -78.4 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -2.80 | 150.38 | -16.21 | 119.80 | 0.3228 | -1049.0 | -848.6 | |
| 0.00 | 4.58 | 0.00 | 2.38 | 0.14 | 150.37 | -16.22 | 111.30 | 0.3012 | -1005.0 | -818.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 0.54 | 149.87 | -16.72 | 109.44 | 0.3065 | -833.0 | -735.6 | |
| 11.54 | 29.42 | 6.02 | 15.35 | -0.55 | 149.68 | -16.91 | 112.49 | 0.3162 | -1069.9 | -793.6 | |
| 5.11 | 22.02 | 2.67 | 11.50 | -1.19 | 149.68 | -16.92 | 114.31 | 0.3206 | -1084.9 | -567.2 | |
| 3.88 | -21.00 | 2.02 | -21.00 | -0.70 | 149.62 | -16.98 | 112.85 | 0.3182 | -1012.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -1.37 | 149.55 | -17.04 | 114.66 | 0.3238 | -618.0 | -707.8 | |
| 0.00 | 2.99 | 0.00 | 1.57 | -1.48 | 149.21 | -17.39 | 114.49 | 0.3298 | -951.0 | -734.7 | |
| 0.00 | 1.67 | 0.00 | 0.88 | -2.12 | 149.04 | -17.55 | 116.01 | 0.3369 | -1000.0 | -882.5 | |
| 2.20 | 12.59 | 1.16 | 6.64 | -2.16 | 148.69 | -17.90 | 115.67 | 0.3423 | -1004.7 | -782.8 | |
| 2.99 | -27.00 | 1.58 | -27.00 | -2.38 | 148.53 | -18.06 | 116.03 | 0.3463 | -878.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -3.11 | 147.57 | -19.03 | 116.64 | 0.3658 | 866.0 | 657.8 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -6.50 | 146.98 | -19.61 | 123.52 | 0.4017 | 699.0 | 544.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
