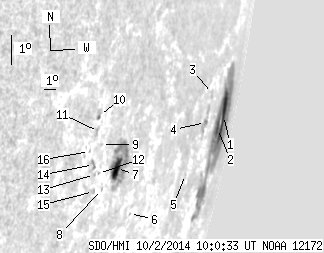

SDO HMI 2014-10-02 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.38 | 229.82 | 108.76 | 752.77 | -10.65 | 245.77 | 79.72 | 258.05 | 0.9861 | -314.9 | 71.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.67 | 144.77 | 67.11 | 606.13 | -10.60 | 248.01 | 81.96 | 258.46 | 0.9939 | -550.0 | 75.2 | |
| 6.08 | -1.00 | 22.83 | -1.00 | -10.90 | 247.11 | 81.06 | 258.04 | 0.9921 | 264.7 | 999999 | |
| 0.00 | 2.91 | 0.00 | 8.35 | -9.55 | 244.81 | 78.76 | 259.06 | 0.9859 | 410.0 | 342.6 | |
| 1.06 | 11.89 | 2.99 | 33.53 | -10.41 | 244.47 | 78.42 | 258.14 | 0.9853 | 380.5 | 285.9 | |
| 0.00 | 0.26 | 0.00 | 0.66 | -11.83 | 242.85 | 76.80 | 256.46 | 0.9810 | -140.0 | -149.3 | |
| 0.00 | 0.70 | 0.00 | 1.20 | -12.38 | 236.95 | 70.91 | 254.85 | 0.9575 | -166.0 | -172.0 | |
| 10.57 | 57.94 | 15.83 | 87.43 | -10.74 | 234.86 | 68.81 | 256.13 | 0.9450 | -393.6 | -19.4 | |
| 0.00 | 0.97 | 0.00 | 1.39 | -11.28 | 233.87 | 67.82 | 255.36 | 0.9401 | -219.0 | -220.2 | |
| 0.00 | 0.26 | 0.00 | 0.36 | -9.81 | 233.20 | 67.15 | 256.76 | 0.9344 | -268.0 | -330.7 | |
| 0.00 | 2.99 | 0.00 | 3.99 | -8.86 | 232.68 | 66.63 | 257.67 | 0.9300 | 440.0 | 272.8 | |
| 0.00 | 1.06 | 0.00 | 1.42 | -9.36 | 232.79 | 66.74 | 257.15 | 0.9313 | -82.0 | -106.0 | |
| 0.00 | 0.35 | 0.00 | 0.49 | -10.73 | 233.36 | 67.31 | 255.83 | 0.9365 | -408.0 | -386.0 | |
| 0.00 | 0.97 | 0.00 | 1.33 | -10.73 | 233.04 | 66.99 | 255.77 | 0.9346 | -362.0 | -365.7 | |
| 0.00 | 2.64 | 0.00 | 3.59 | -10.39 | 232.82 | 66.77 | 256.08 | 0.9328 | -530.0 | -433.4 | |
| 0.00 | 1.41 | 0.00 | 1.97 | -11.27 | 233.22 | 67.17 | 255.23 | 0.9363 | -427.0 | -363.9 | |
| 0.00 | 0.70 | 0.00 | 0.93 | -9.93 | 232.32 | 66.27 | 256.46 | 0.9291 | -319.0 | -273.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
