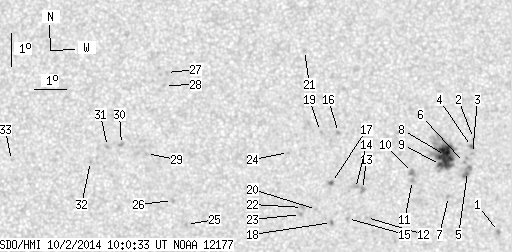

SDO HMI 2014-10-02 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.77 | 113.84 | 13.37 | 56.88 | 12.74 | 168.98 | 2.93 | 325.87 | 0.1289 | -187.6 | -197.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.84 | 10.67 | 172.20 | 6.15 | 303.92 | 0.1274 | -1032.0 | -848.9 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 13.48 | 171.49 | 5.44 | 322.34 | 0.1516 | -801.0 | -655.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 13.03 | 171.45 | 5.40 | 320.60 | 0.1451 | -767.0 | -569.5 | |
| 0.44 | 1.76 | 0.22 | 0.88 | 13.24 | 171.42 | 5.37 | 321.66 | 0.1476 | -1043.0 | -864.1 | |
| 0.00 | 7.22 | 0.00 | 3.61 | 12.49 | 171.28 | 5.23 | 318.93 | 0.1362 | -884.0 | -845.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 12.76 | 171.19 | 5.15 | 320.71 | 0.1388 | -921.0 | -732.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.74 | 170.68 | 4.63 | 318.41 | 0.1197 | -918.0 | -784.3 | |
| 23.51 | 58.82 | 11.75 | 29.41 | 12.98 | 170.61 | 4.56 | 324.96 | 0.1357 | -1220.5 | -533.5 | |
| 2.29 | -8.00 | 1.14 | -8.00 | 12.71 | 170.45 | 4.40 | 324.72 | 0.1303 | -1091.5 | 999999 | |
| 0.00 | 3.70 | 0.00 | 1.85 | 12.47 | 169.59 | 3.54 | 329.36 | 0.1188 | -1250.0 | -972.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 12.23 | 169.58 | 3.53 | 328.29 | 0.1151 | -930.0 | -801.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 11.13 | 168.16 | 2.11 | 335.19 | 0.0865 | 862.0 | 662.3 | |
| 0.00 | 3.26 | 0.00 | 1.62 | 11.97 | 168.04 | 2.00 | 339.85 | 0.0993 | -959.0 | -705.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 12.00 | 167.83 | 1.78 | 341.97 | 0.0986 | -124.0 | -72.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.10 | 167.58 | 1.53 | 341.37 | 0.0823 | 1209.0 | 920.3 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 13.70 | 167.32 | 1.27 | 350.05 | 0.1251 | 814.0 | 698.2 | |
| 0.53 | 2.82 | 0.26 | 1.40 | 12.19 | 167.09 | 1.05 | 349.53 | 0.0986 | 1005.0 | 815.4 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.98 | 167.09 | 1.04 | 346.74 | 0.0780 | 1066.0 | 875.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 13.73 | 166.76 | 0.71 | 354.39 | 0.1244 | 809.0 | 690.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.38 | 166.63 | 0.58 | 353.11 | 0.0834 | 851.0 | 665.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 16.18 | 166.27 | 0.23 | 358.69 | 0.1665 | -658.0 | -403.9 | |
| 0.00 | 1.94 | 0.00 | 0.96 | 11.44 | 166.20 | 0.15 | 358.19 | 0.0839 | 999.0 | 859.1 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 11.23 | 166.14 | 0.09 | 358.86 | 0.0802 | 1130.0 | 857.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.09 | 165.77 | -0.27 | 2.38 | 0.1129 | 821.0 | 604.5 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 10.92 | 162.66 | -3.39 | 37.91 | 0.0950 | 896.0 | 767.7 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 11.64 | 162.22 | -3.83 | 36.88 | 0.1095 | 864.0 | 699.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 15.50 | 161.97 | -4.08 | 23.95 | 0.1695 | 844.0 | 607.9 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 15.11 | 161.92 | -4.13 | 25.26 | 0.1637 | 859.0 | 573.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.05 | 161.40 | -4.65 | 35.24 | 0.1375 | 922.0 | 702.3 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 13.31 | 160.62 | -5.43 | 38.31 | 0.1492 | 1045.0 | 911.9 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 13.25 | 160.19 | -5.86 | 40.72 | 0.1531 | 961.0 | 791.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.79 | 159.67 | -6.38 | 45.18 | 0.1534 | 844.0 | 654.8 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 12.79 | 157.22 | -8.83 | 54.13 | 0.1856 | 718.0 | 543.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
