SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.51 | 136.65 | 31.63 | 94.59 | 7.11 | 210.14 | 44.64 | 273.37 | 0.7004 | -165.2 | 44.1 | |
|
previous
or next observation for the same group /

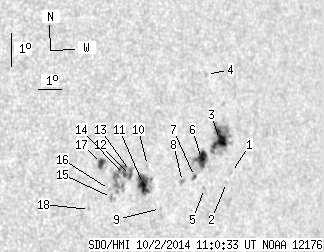

back to the solar disc SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.76 | 6.58 | 212.50 | 47.00 | 272.80 | 0.7297 | -287.0 | -362.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 6.30 | 212.24 | 46.74 | 272.39 | 0.7269 | -465.0 | -398.1 | |
| 14.88 | 44.99 | 10.66 | 32.26 | 7.61 | 212.11 | 46.61 | 274.19 | 0.7245 | -874.7 | -345.1 | |
| 0.00 | 1.58 | 0.00 | 1.13 | 9.60 | 211.85 | 46.35 | 276.94 | 0.7211 | -258.0 | -285.4 | |
| 0.00 | 1.32 | 0.00 | 0.93 | 6.21 | 211.27 | 45.77 | 272.18 | 0.7152 | -552.0 | -412.5 | |
| 10.57 | 17.17 | 7.46 | 12.11 | 7.11 | 211.25 | 45.75 | 273.45 | 0.7144 | -856.2 | -597.9 | |
| 0.70 | 2.03 | 0.49 | 1.42 | 6.60 | 210.88 | 45.38 | 272.70 | 0.7102 | -437.6 | -422.9 | |
| 0.00 | 2.47 | 0.00 | 1.71 | 6.49 | 210.35 | 44.85 | 272.52 | 0.7038 | -281.0 | -124.9 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 5.76 | 209.34 | 43.84 | 271.38 | 0.6917 | 23.0 | -70.2 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 7.09 | 208.94 | 43.44 | 273.29 | 0.6858 | -574.0 | -519.5 | |
| 12.77 | 23.51 | 8.63 | 15.91 | 6.53 | 208.71 | 43.21 | 272.46 | 0.6832 | 682.2 | 217.9 | |
| 1.14 | 30.11 | 0.77 | 20.09 | 6.85 | 208.21 | 42.71 | 272.89 | 0.6766 | 625.1 | 606.1 | |
| 0.26 | -12.00 | 0.18 | -12.00 | 6.97 | 208.22 | 42.72 | 273.06 | 0.6767 | 402.3 | 999999 | |
| 1.58 | -12.00 | 1.06 | -12.00 | 6.90 | 207.97 | 42.47 | 272.95 | 0.6735 | 675.9 | 999999 | |
| 0.00 | 3.17 | 0.00 | 2.10 | 6.25 | 207.37 | 41.87 | 271.94 | 0.6661 | 699.0 | 533.1 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 6.49 | 207.31 | 41.81 | 272.30 | 0.6652 | 732.0 | 606.2 | |
| 3.61 | 5.46 | 2.38 | 3.60 | 7.30 | 207.07 | 41.57 | 273.50 | 0.6617 | 814.5 | 662.1 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 5.96 | 206.45 | 40.95 | 271.42 | 0.6544 | 619.0 | 499.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
