SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.78 | 0.00 | 3.78 | 5.20 | 138.39 | -27.11 | 91.60 | 0.4556 | 32.5 | -147.1 | |
|
previous
or next observation for the same group /

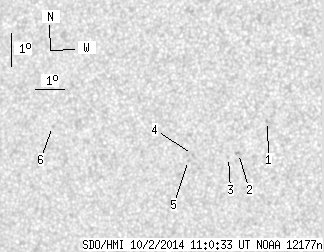

back to the solar disc SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.67 | 6.04 | 140.54 | -24.96 | 89.98 | 0.4214 | -734.0 | -670.0 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 5.03 | 139.62 | -25.88 | 92.18 | 0.4370 | -834.0 | -685.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 4.90 | 139.29 | -26.21 | 92.43 | 0.4423 | -323.0 | -401.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 4.93 | 138.07 | -27.43 | 92.13 | 0.4612 | 728.0 | 484.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 4.74 | 137.94 | -27.56 | 92.51 | 0.4634 | 614.0 | 451.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 5.49 | 133.17 | -32.33 | 90.25 | 0.5345 | 744.0 | 551.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
