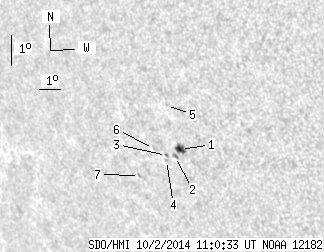

SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.84 | 13.83 | 3.73 | 10.75 | -13.24 | 118.84 | -46.67 | 113.29 | 0.7731 | 385.7 | 215.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.84 | 6.69 | 3.73 | 5.15 | -13.10 | 119.29 | -46.22 | 113.32 | 0.7680 | 716.0 | 546.9 | |
| 0.00 | 2.29 | 0.00 | 1.78 | -13.34 | 119.00 | -46.50 | 113.49 | 0.7719 | 347.0 | 290.7 | |
| 0.00 | 1.32 | 0.00 | 1.03 | -13.35 | 118.59 | -46.91 | 113.32 | 0.7760 | 83.0 | 96.5 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -13.51 | 118.55 | -46.95 | 113.49 | 0.7771 | 294.0 | 284.3 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -11.74 | 118.98 | -46.52 | 111.51 | 0.7659 | 595.0 | 517.9 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -13.17 | 118.04 | -47.46 | 112.87 | 0.7808 | 303.0 | 337.0 | |
| 0.00 | 1.32 | 0.00 | 1.07 | -14.11 | 117.14 | -48.36 | 113.61 | 0.7932 | -540.0 | -473.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
