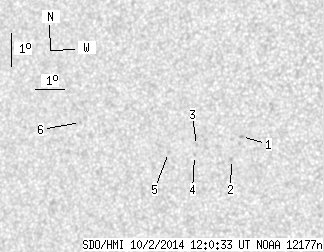

SDO HMI 2014-10-02 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.15 | 0.00 | 3.43 | 4.65 | 137.96 | -26.99 | 92.84 | 0.4546 | 153.0 | 8.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.68 | 5.03 | 139.58 | -25.38 | 92.29 | 0.4291 | -866.0 | -761.9 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 4.32 | 139.27 | -25.68 | 93.86 | 0.4350 | -614.0 | -460.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 4.68 | 138.08 | -26.87 | 92.77 | 0.4529 | 628.0 | 443.5 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 4.38 | 138.02 | -26.93 | 93.42 | 0.4543 | 552.0 | 524.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 4.42 | 137.14 | -27.81 | 93.13 | 0.4678 | 742.0 | 624.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 5.15 | 134.06 | -30.89 | 91.08 | 0.5135 | 476.0 | 389.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
